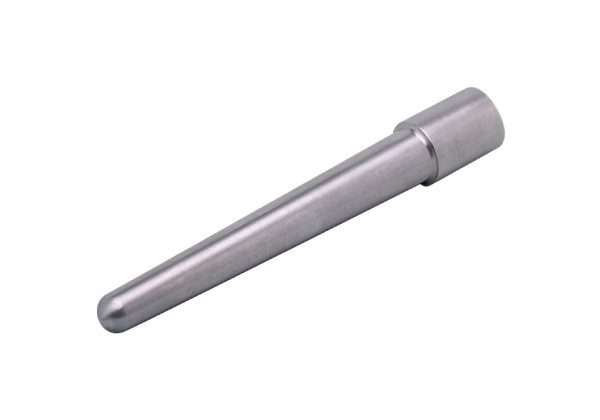

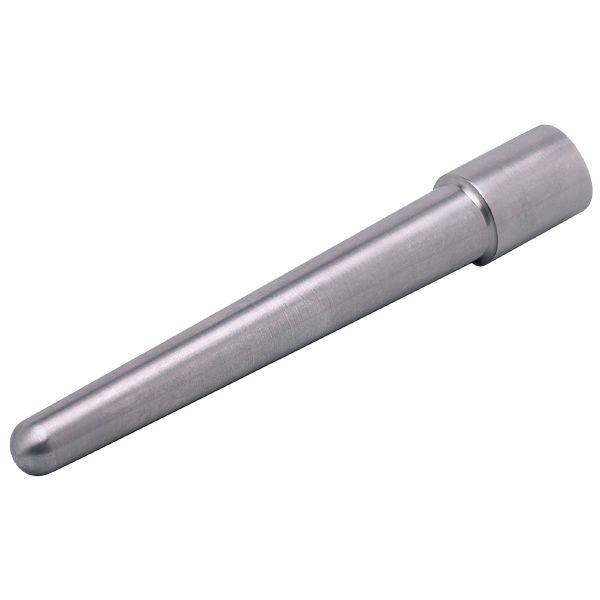

E35220 - efector600-WELDING THERMOWELL G1/2
Brand: IFM Electronic
Code: E35220
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Robust stainless steel housing for the requirements of harsh industrial environments
Application
| Design | for temperature sensors EL = 200 mm |
|---|---|
| Pressure rating [bar] | 100 |
Measuring/setting range
| Probe length L [mm] | 173 |
|---|
Mechanical data
| Weight [g] | 516.35 |
|---|---|
| Dimensions [mm] | Ø 10 |
| Materials | stainless steel (1.4571/316Ti ) |
| Sensor connection | G 1/2 |
| Process connection | welding adapter Ø 30 mm |
| Surface characteristics Ra/Rz of the wetted parts | < 0.6 / - |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E35220-00 — 06.03.2003 —
