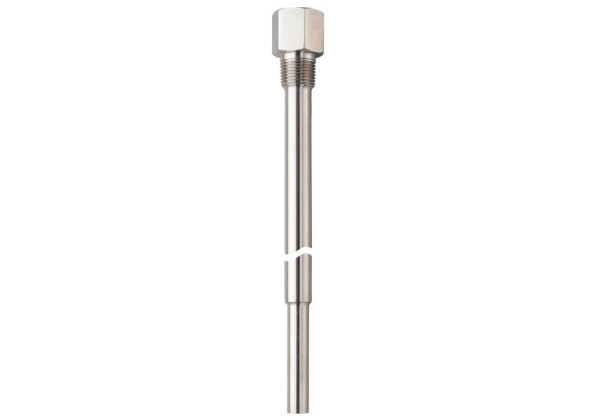

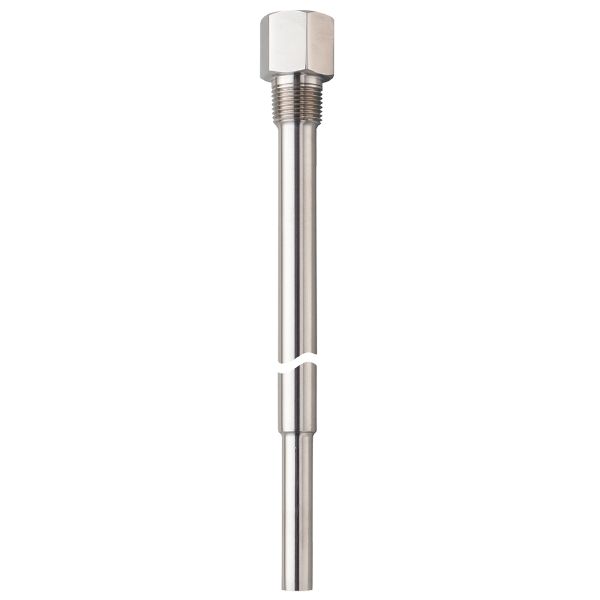

E37230 - efector600-THERMOWELL, D6/1/2″NPT/L=230
Brand: IFM Electronic
Code: E37230
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- Particularly high pressure rating
- Simple process connection via adapter
- Robust stainless steel housing for the requirements of harsh industrial environments
Application
| Design | for temperature sensors EL = 300 mm |
|---|---|
| Pressure rating [bar] | 400 |
Accuracy / deviations
| Max. permissible flow velocity [m/s] | 12 |
|---|
Mechanical data
| Weight [g] | 90.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT |
| Process connection | 1/2" NPT |
| Installation length EL [mm] | 201 |
| Bore length BL [mm] | 228.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37230-00 — 18.09.2014 —
