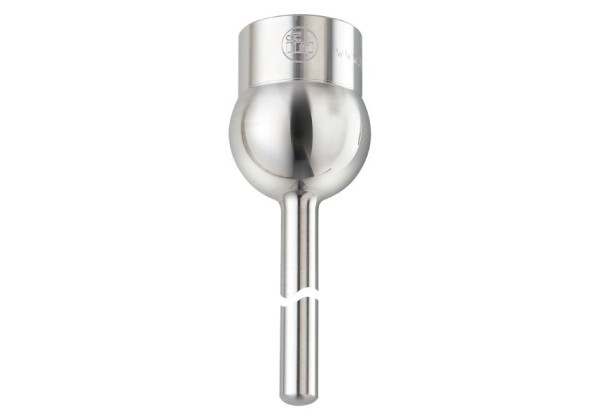

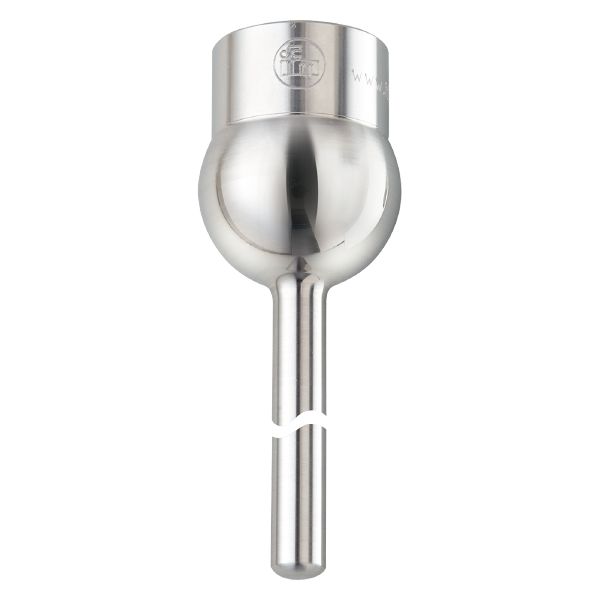

E37431 - efector600-THERMOWELL,D6/WELD-IN/G1/2 conical/L=150
Brand: IFM Electronic
Code: E37431
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- Particularly high pressure rating
- Hygienic design for the requirements of the food and beverage industry
- Robust stainless steel housing for use in harsh industrial environments
Application
| Design | for temperature sensors EL = 150 mm |
|---|---|
| Pressure rating [bar] | 300 |
Mechanical data
| Weight [g] | 186.55 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 sealing cone Ø 6 mm |
| Process connection | welding adapter Ø 34 mm |
| Surface characteristics Ra/Rz of the wetted parts | ≤ 0.6 / - |
| Installation length EL [mm] | 149 |
| Bore length BL [mm] | 187 |
Remarks
| Pack quantity | 1 pcs. |
|---|
