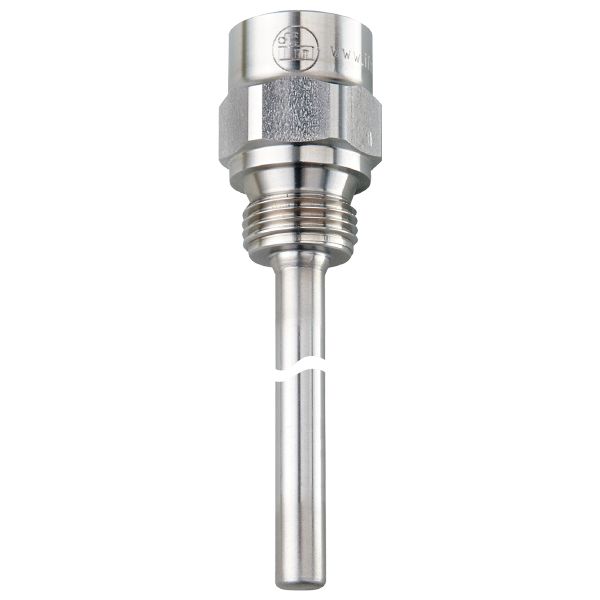

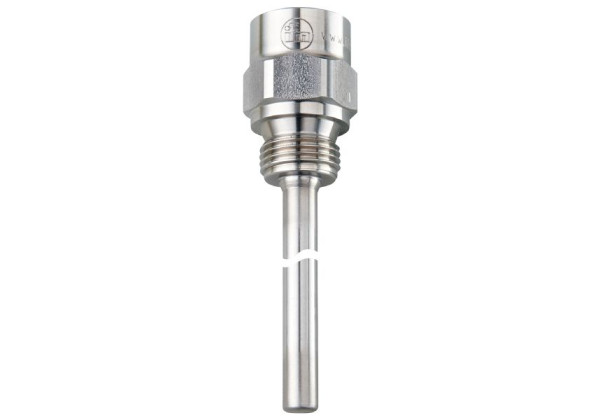

E37620 - efector600-THERMOWELL, D6/ G1/2 /L=150
Brand: IFM Electronic
Code: E37620
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Robust stainless steel housing for the requirements of harsh industrial environments
Application
| Design | for temperature sensors EL = 150 mm | |
|---|---|---|
| Pressure rating [bar] | 100 | |
| Note on pressure rating |
|
Mechanical data
| Weight [g] | 145.1 |
|---|---|
| Materials | stainless steel (1.4571/316Ti ) |
| Sensor connection | G 1/2 Ø 6 mm |
| Process connection | G 1/2 |
| Installation length EL [mm] | 124 |
| Bore length BL [mm] | 150 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37620-00 — 17.09.2014 —
