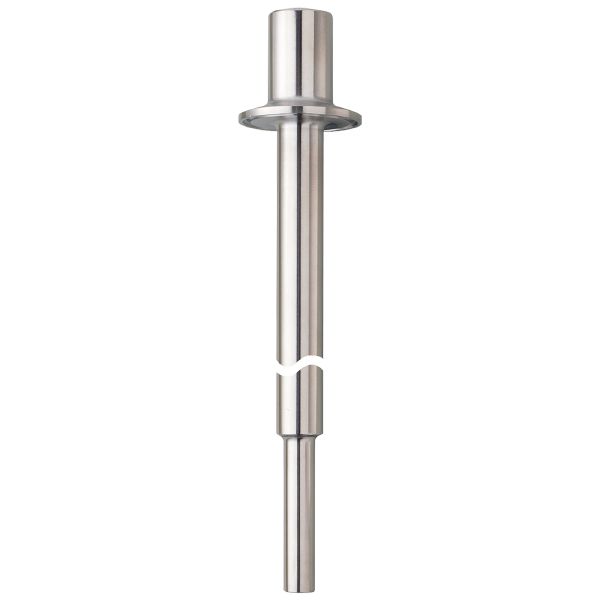

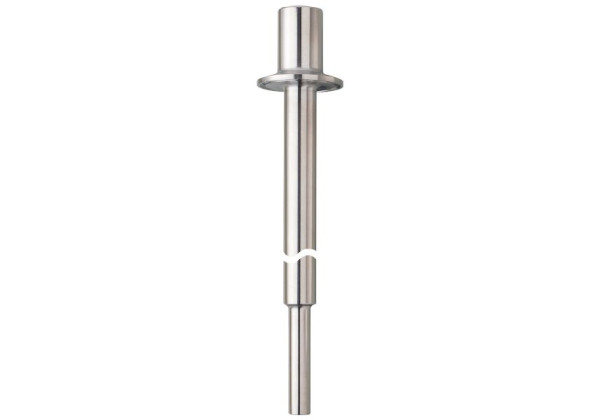

E37830 - efector600-THERMOWELL, D6/1,5″CLAMP/L=230
Brand: IFM Electronic
Code: E37830
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- Robust stainless steel housing with high pressure rating
- Simple process connection via clamp adapter
- Hygienic design for the requirements of the food and beverage industry
Application
| Design | for temperature sensors EL = 300 mm |
|---|---|
| Pressure rating [bar] | 25 |
Mechanical data
| Weight [g] | 500.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts | ≤ 0.6 / - |
| Installation length EL [mm] | 191 |
| Bore length BL [mm] | 228.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37830-00 — 15.09.2014 —
