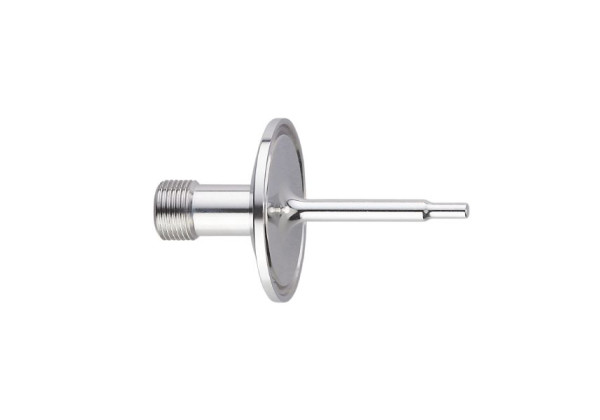

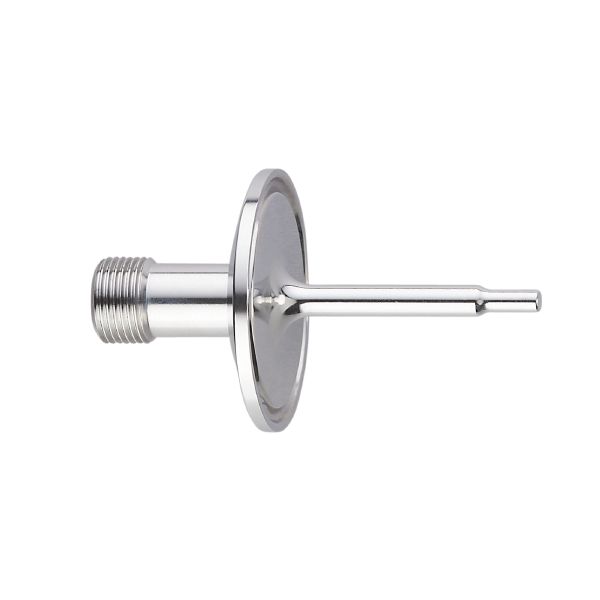

E38825 Thermowell for temperature sensors THERMOWELL, D3/1-1,5"CLAMP/EL=50
Brand: IFM Electronic
Code: E38825
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Hygienic design for the requirements of the food and beverage industry
Application
| Design | for temperature sensors EL = 83 mm |
|---|---|
| Pressure rating [bar] | 25 |
Mechanical data
| Weight [g] | 108.4 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 3/8 internal thread Ø 3 mm |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts | < 0.4 / - |
| Installation length EL [mm] | 50 |
| Bore length BL [mm] | 83 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E38825-00 — 21.02.2019 —
