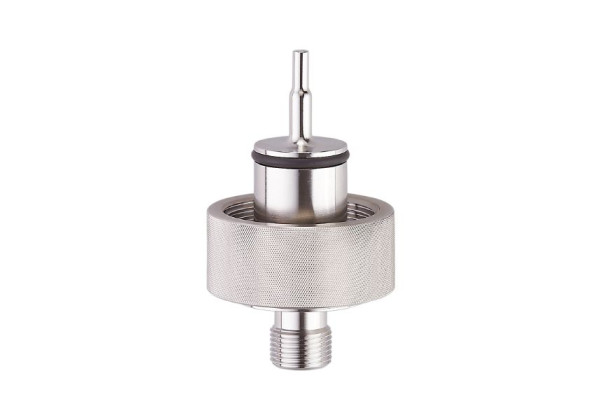

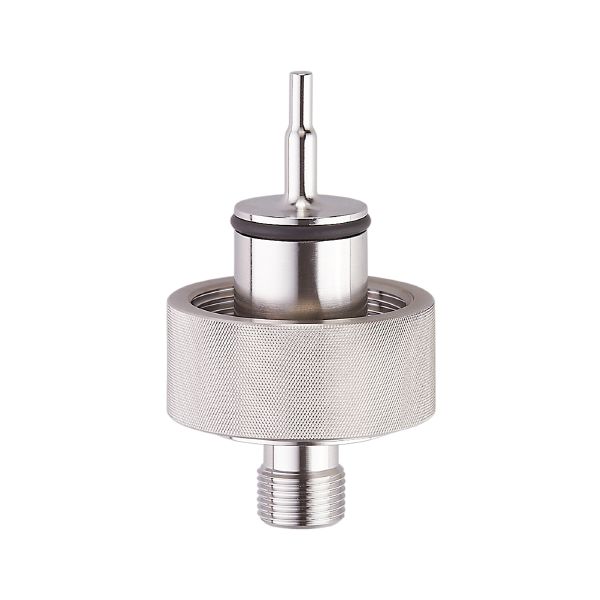

E38826 Thermowell for temperature sensors THERMOWELL, D3/DN25 Ingold/EL=25
Brand: IFM Electronic
Code: E38826
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Hygienic design for the requirements of the food and beverage industry
Application
| Design | for temperature sensors EL = 83 mm |
|---|---|
| Pressure rating [bar] | 16 |
Mechanical data
| Weight [g] | 868 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 3/8 internal thread Ø 3 mm |
| Process connection | Ingold Ø 25 mm |
| Surface characteristics Ra/Rz of the wetted parts | < 0.4 / - |
| Installation length EL [mm] | 25 |
| Bore length BL [mm] | 83 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E38826-00 — 28.04.2020 —
