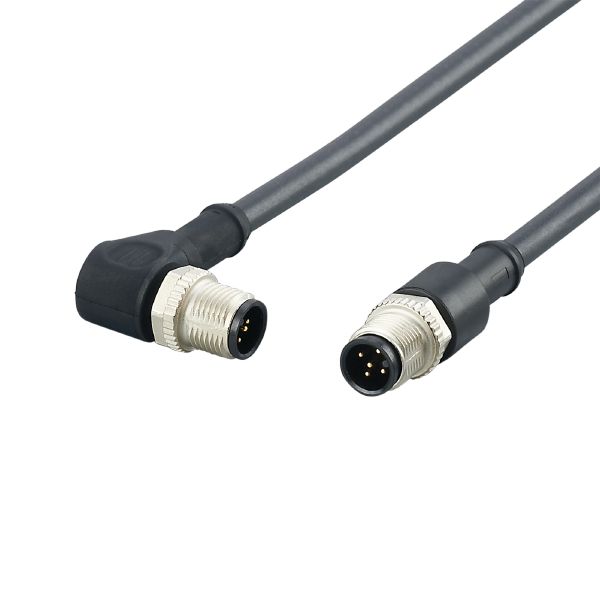

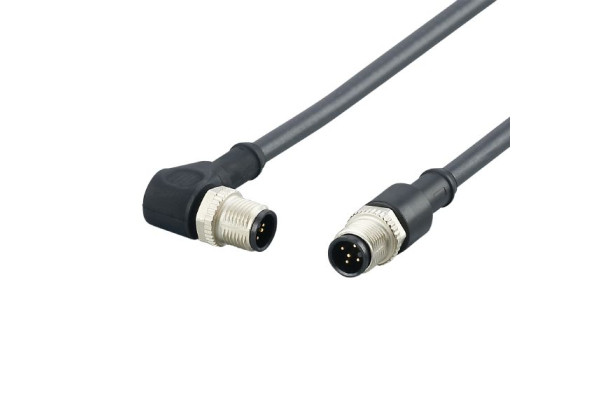

E3M152 - efector250-CONNECTION CABLE M12 11M
Brand: IFM Electronic
Code: E3M152
- Reliable connection of a mobile 3D camera to a display
- Good electromagnetic compatibility thanks to shielded cable
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Screened cable; Drag chain suitability |
|---|---|
| Design | for 3D Smart sensor mobile with analogue video output PAL |
Electrical data
| Operating voltage [V] | < 25 AC / < 60 DC |
|---|---|
| Protection class | III |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Protection | IP 67; IP 69K |
Mechanical data
| Weight [g] | 562.5 | ||
|---|---|---|---|
| Materials | housing: PUR; Sealing: FKM; contact pins: CuSn6 nickel-plated and tin-plated | ||
| Material nut | stainless steel (1.4305 / 303) | ||
| Drag chain suitability | yes | ||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4305 / 303) |
Electrical connection
| Connection | Cable: 11 m, black, Ø 6 mm, shielded; 3 x 0.25 mm² |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4305 / 303) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E3M152-00 — 26.04.2016 —
