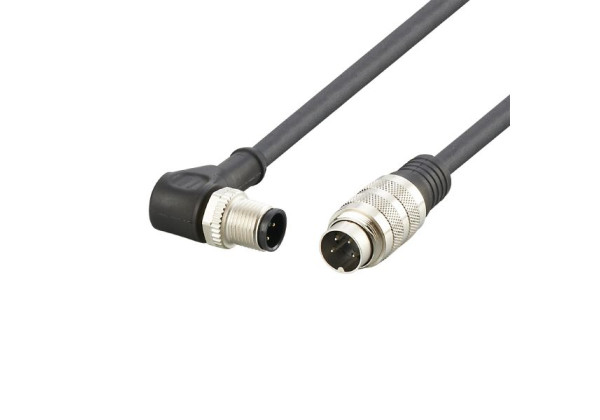

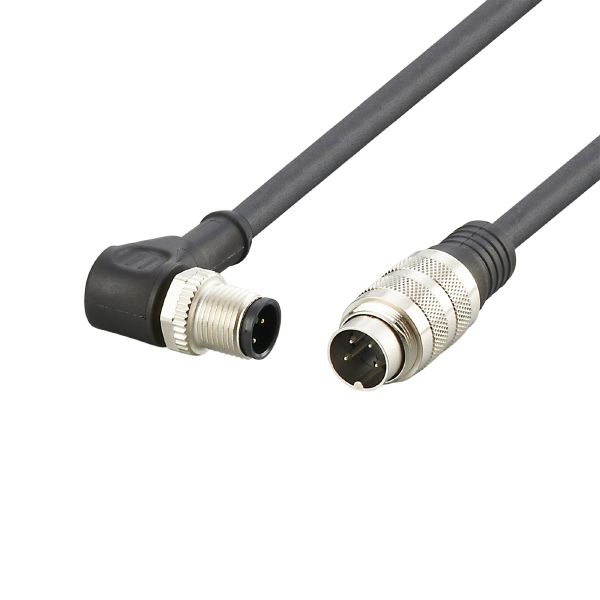

E3M161 - VIDEO ADAPTER CABLE M12 M16
Brand: IFM Electronic
Code: E3M161
- Reliable connection of mobile cameras with video output
- Gold-plated contacts for reliable electrical connections
- For connection of the MultiViewBox
- Good electromagnetic compatibility thanks to shielded cable
- High protection rating for the requirements of harsh industrial environments
Application
| Special feature | Screened cable; Drag chain suitability |
|---|---|
| Design | for 3D Smart sensor mobile with analogue video output PAL |
Electrical data
| Operating voltage [V] | < 25 AC / < 60 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Ambient temperature (moving) [°C] | -10...70 |
| Protection | IP 67; IP 69K |
Mechanical data
| Weight [g] | 92.2 | ||
|---|---|---|---|
| Materials | PUR black; sealing ring: FKM; contact pins: CuSn6 nickel-plated and tin-plated | ||
| Moulded-body material | PUR | ||
| Material nut | stainless steel (1.4305 / 303) | ||
| Drag chain suitability | yes | ||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, angled; coding: A; Moulded body: PUR; Locking: stainless steel (1.4305 / 303); Shielded connection cable: screen connected |
Electrical connection
| Connection | Cable: 1 m, PUR, black, Ø 6 mm, shielded; 2 x 0.25 mm² |
|---|
Electrical connection - plug
| Connector: 1 x M16, straight; coding: A; Moulded body: PUR; Locking: stainless steel (1.4305 / 303); Shielded connection cable: screen connected |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E3M161-00 — 21.10.2016 —
