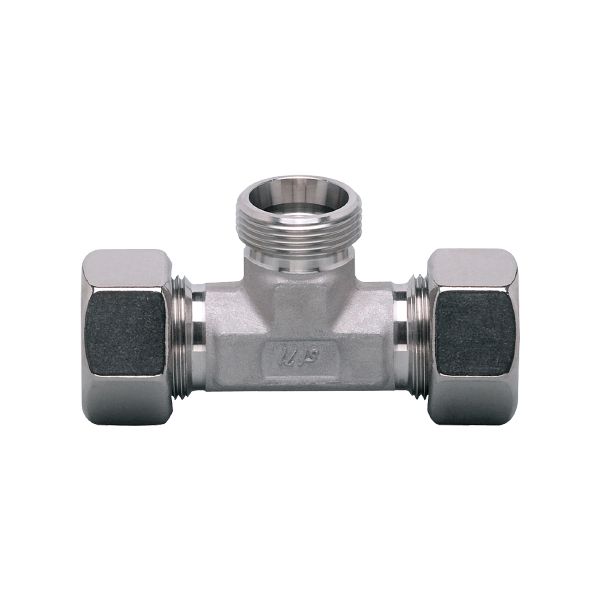

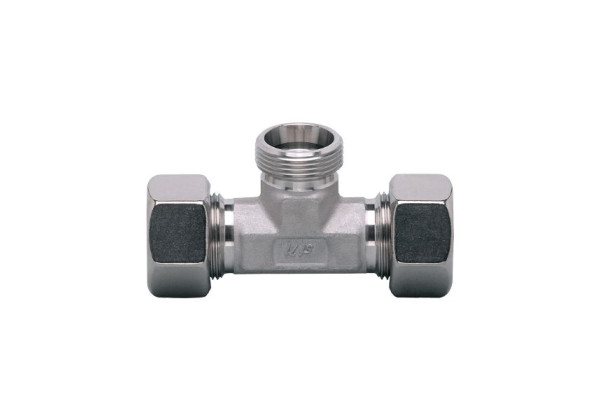

E40082 - efector300-T-PIECE QL22-18-22/MS

Code: E40082

Safe installation of process sensors in pipes
For use in industrial environments
Adapter for ensuring the correct immersion depth
High pressure rating

Application

Design	for sensors and adapters with process connection M26x1,5
Application	for industrial applications
Media	liquids and gases
Pressure rating [bar]	160

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC	The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions	The compatibility between medium and product material has to be checked in all applications.

Mechanical data

Weight [g]	378.2
Type of mounting	Recommendation: precision steel pipes 22 x 1,5 DIN 2391/ISO 3304
Materials	brass (2.0401)
Sensor connection	M26 x 1,5
Process connection	Ø 22 mm

Accessories

Accessories (optional)

Adapter: 1 x M18 x 1,5, for direct connection of flow sensors, E40104

Remarks

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40082-00 — 10.11.2014 —
