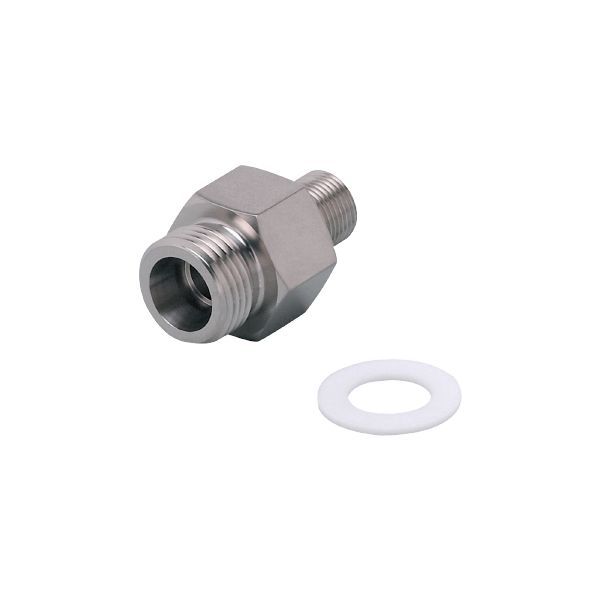

E40128 Screw-in adapter for process sensors ADAPT /SI/9/ /M12X1 /TI
Brand: IFM Electronic
Code: E40128
- For the installation of flow and temperature sensors in containers and pipes
- Easy, quick and secure mounting
- Suitable for liquids and gases
- High permissible overload pressure rating
- Robust titanium design for use in aggressive media
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Pressure rating [bar] | 30 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 35.3 |
|---|---|
| Dimensions [mm] | M18 x 1.5 |
| Thread designation | M18 x 1.5 |
| Materials | titanium (3.7235) |
| Sensor connection | M18 x 1,5 |
| Process connection | threaded connection M12 x 1 |
| Insertion depth [mm] | 13.5; (measuring probe SID, SFD, TN) |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40128-00 — 10.11.2014 —
