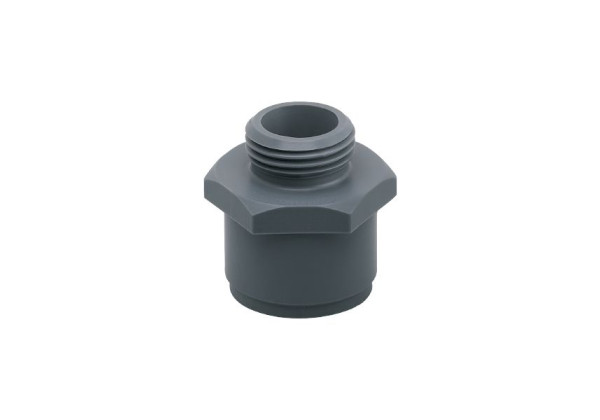

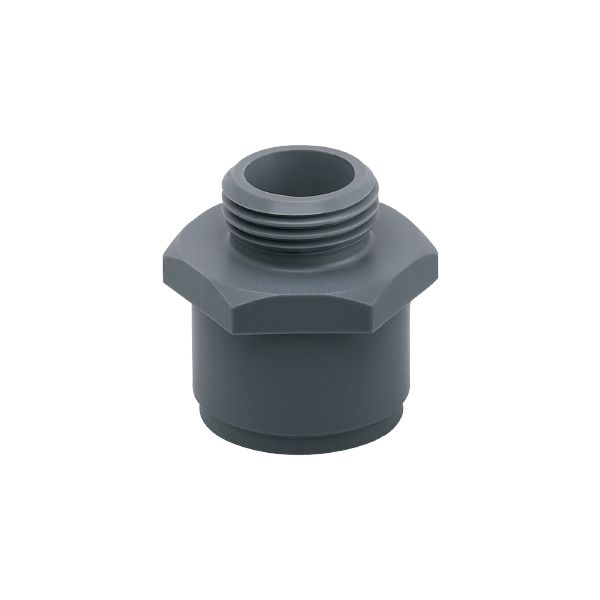

E40148 - efector300-ADAPT /SI/9/ /M18X1,5/ /
Brand: IFM Electronic
Code: E40148
- Welding adapter for process sensors
- Easy, quick and secure mounting
- Suitable for liquids and gases
- Very high, reliable overload pressure rating
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Pressure rating [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 15.6 |
|---|---|
| Type of mounting | PVC adapter to be glued into the pipe |
| Materials | PVC |
| Sensor connection | M18 x 1,5 internal thread |
| Process connection | welding adapter Ø 23 mm |
| Insertion depth [mm] | 21; (measuring probe SID, SFD, TN) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40148-00 — 11.11.2014 —
