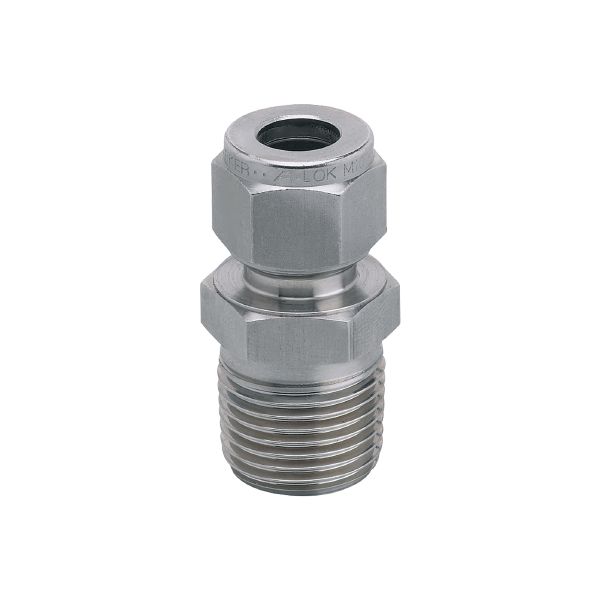

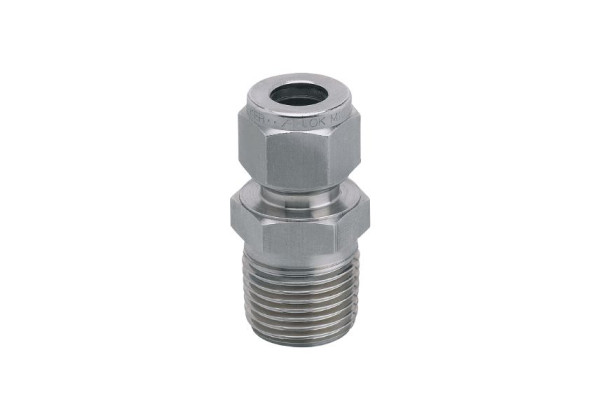

E40160 - efector300-CLAMP ADAPTER R1/2
Brand: IFM Electronic
Code: E40160
- For the installation of flow sensors in pipes
- Easy, quick and secure mounting
- Easy adjustment of the immersion depth of the sensor
- Very high, reliable overload pressure rating
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors Ø 10 mm |
|---|---|
| Application | for industrial applications |
| Installation | Clamp fitting |
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 80 |
|---|---|
| Materials | stainless steel |
| Sensor connection | Ø 10 mm |
| Process connection | threaded connection R 1/2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40160-00 — 11.11.2014 —
