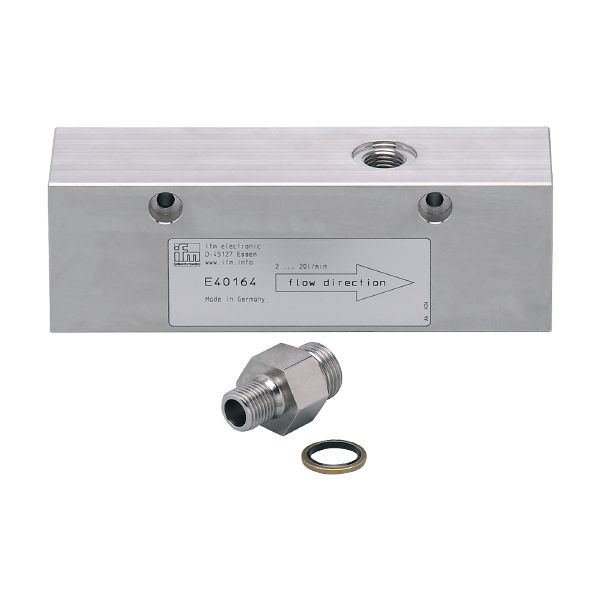

E40164 - efector300-ADAPTBLOCK D27 G1
Brand: IFM Electronic
Code: E40164
- For the installation of flow sensors in pipes
- For the precise detection of a defined volumetric flow quantity
- Easy, quick and secure mounting
- Very high, reliable overload pressure rating
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors SID, SF5 |
|---|---|
| Flow range [l/min] | 2...20; ((SI1xxx); 2...25 (SI5xxx); factory setting with water) |
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
Tests / approvals
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
|---|
Mechanical data
| Weight [g] | 1512.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | M18 x 1,5 |
| Process connection | G 1 |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40164-00 — 11.11.2014 —
