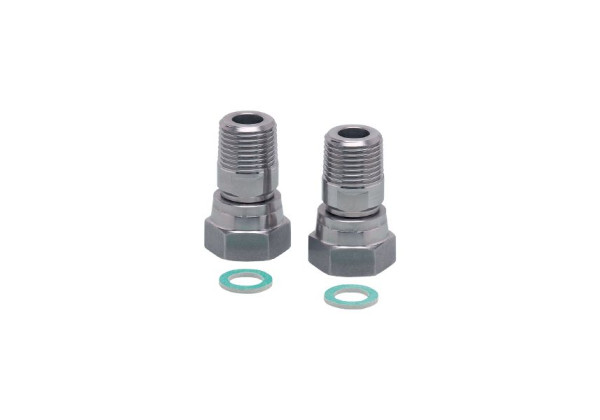

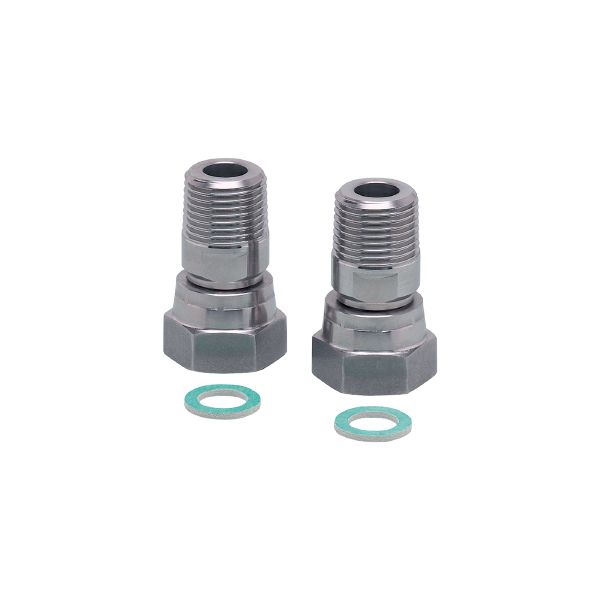

E40200 - efector300-REDADAPT G1/2″-1/2NPT
Brand: IFM Electronic
Code: E40200
- For the installation of flow sensors in pipes
- Easy, quick and secure mounting
- Suitable for magnetic-inductive sensors
- Requested sealings supplied with the unit
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors SM6 |
|---|---|
| MAWP (for applications according to CRN) [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 264.5 |
|---|---|
| Materials | Adapter: stainless steel (1.4571/316Ti ); Gasket: Centellen 18,5 x 12 x 3 mm |
| Sensor connection | G 1/2 |
| Process connection | threaded connection 1/2" NPT |
| Sealing | flat seal |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40200-00 — 03.12.2007 —
