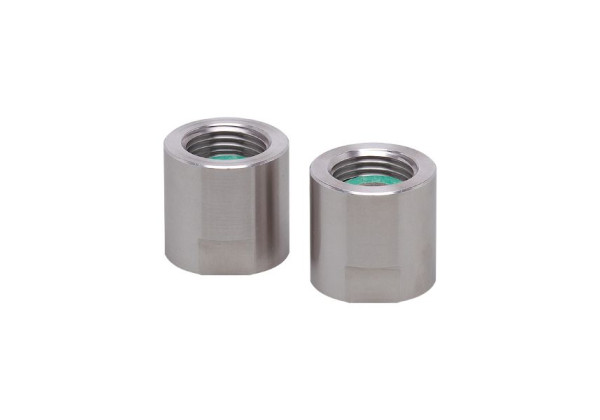

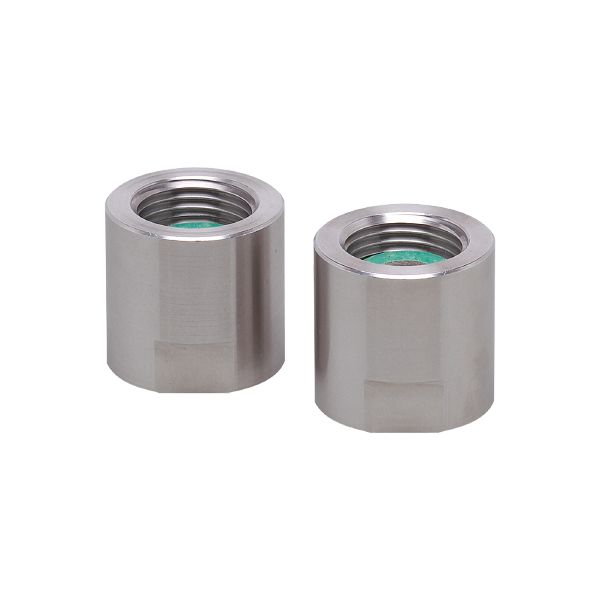

E40213 - efector300-SCREW-IN ADAPTER 1/2″ SM
Brand: IFM Electronic
Code: E40213
- For the installation of flow sensors in pipes
- Easy, quick and secure mounting
- Suitable for magnetic-inductive sensors
- Requested sealings supplied with the unit
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors SM6 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 178 |
|---|---|
| Materials | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 18,5 x 12 x 3 mm |
| Sensor connection | G 1/2 |
| Process connection | threaded connection G 1/2 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40213-00 — 22.04.2009 —
