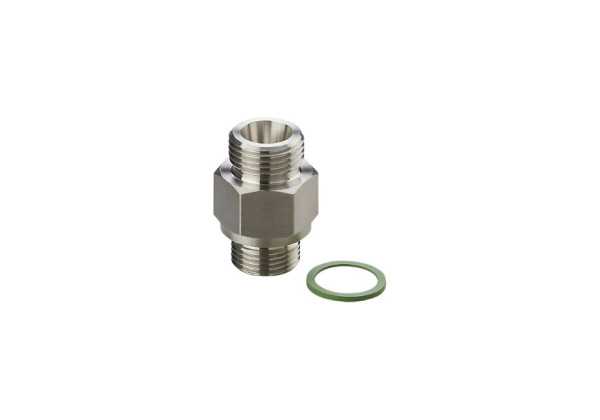

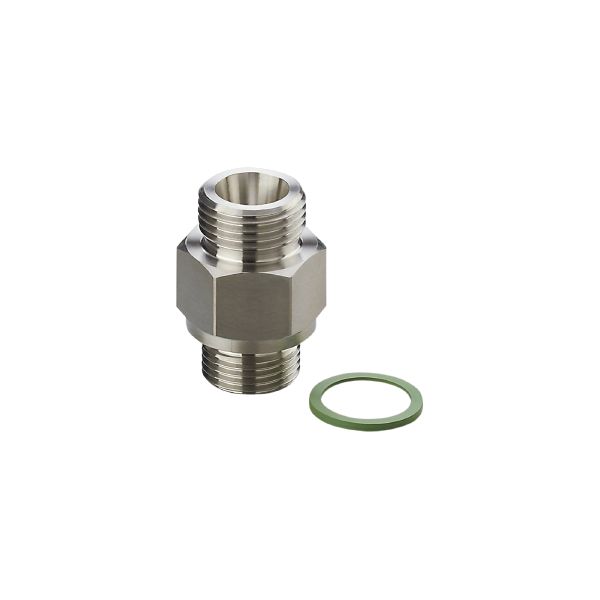

E40237 - ADAPT SI/G3/8/VA
Brand: IFM Electronic
Code: E40237
- For the installation of flow and temperature sensors in containers and pipes
- Easy, quick and secure mounting
- Suitable for liquids and gases
- High permissible overload pressure rating
- Robust stainless steel design for use in harsh industrial environments
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
Tests / approvals
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
|---|
Mechanical data
| Weight [g] | 64.2 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | M18 x 1,5 internal thread |
| Process connection | threaded connection G 3/8 |
| Insertion depth [mm] | 13.5; (measuring probe SID, SFD, TN) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40237-00 — 08.12.2014 —
