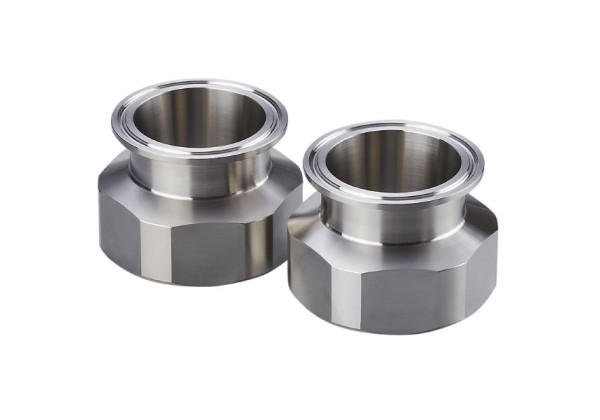

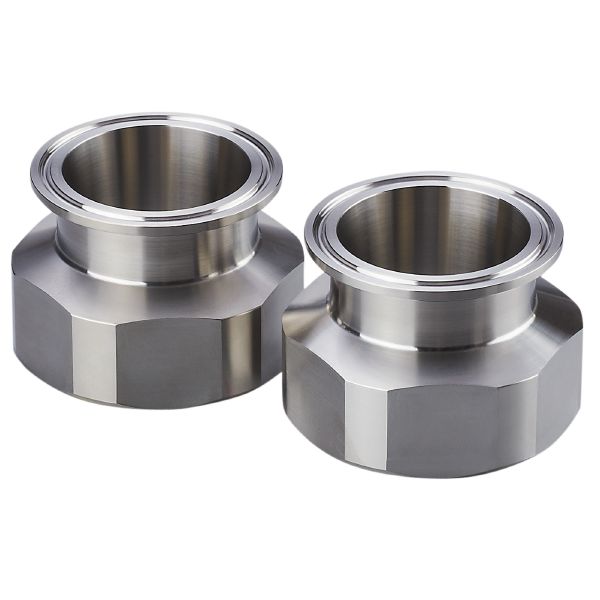

E40254 - efector300-ADAPT G2-CLAMP/D64,0/DIN32676
Brand: IFM Electronic
Code: E40254
- For the installation of magnetic-inductive flow sensors in pipes
- Easy, quick and secure mounting
- High permissible overload pressure rating
- Requested sealings supplied with the unit
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors Typ SM2, SM9 |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 1040 |
|---|---|
| Materials | Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 47,22 x 3,53 mm |
| Sensor connection | G 2 |
| Process connection | Clamp DN50 (2") DIN 32676 (ISO 2852) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40254-00 — 23.04.2015 —
