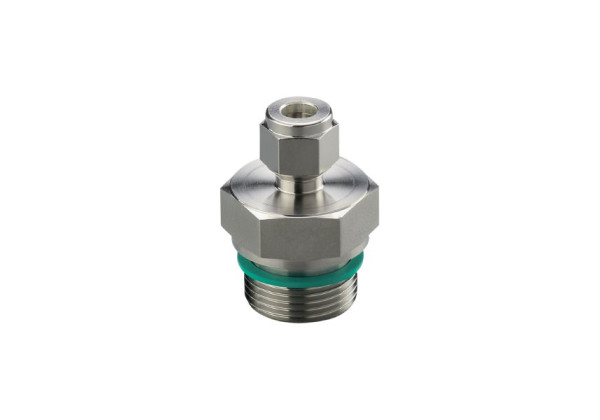

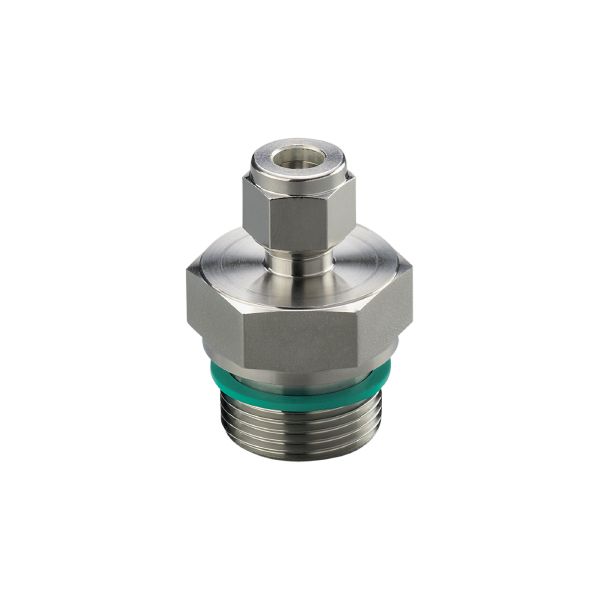

E40260 - COMPRESSION FITTING G3/4
Brand: IFM Electronic
Code: E40260
- For a quick and easy mounting of temperature sensors
- User-friendly setting of the requested immersion depth of the sensor
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
Application
| Installation | Progressive ring fitting |
|---|---|
| Pressure rating [bar] | 50 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 159.3 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); Gasket: FKM |
| Sensor connection | Ø 8 mm |
| Process connection | threaded connection G 3/4 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40260-00 — 05.11.2015 —
