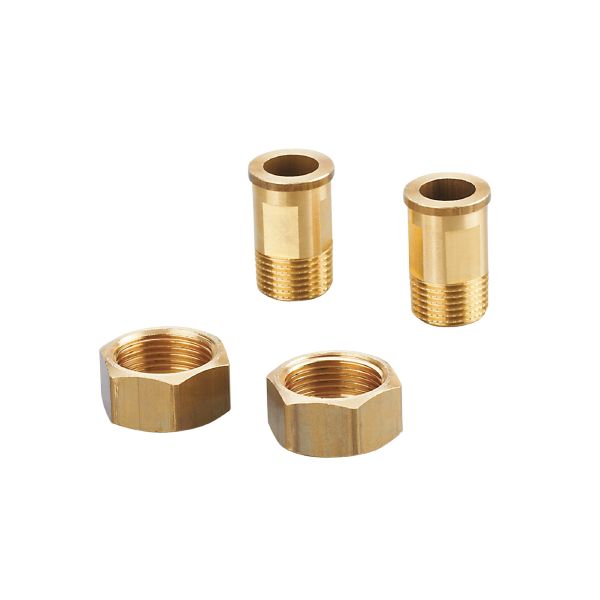

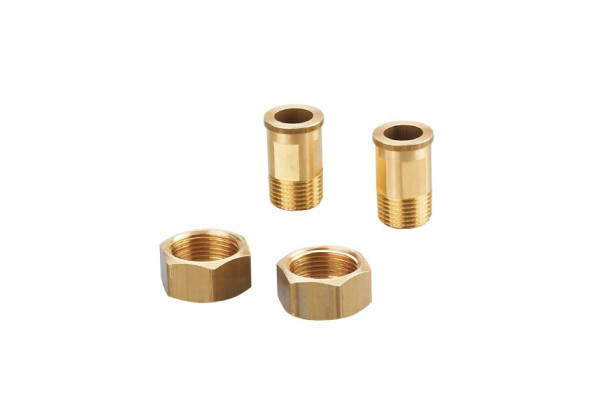

E40440 Mounting adapter for flow sensors ADAPTER G3/4-R1/2/MS/SV
Brand: IFM Electronic
Code: E40440
- For the installation of flow sensors in pipes
- Easy, quick and secure mounting
- High permissible overload pressure rating
- Robust design for use in harsh industrial environments
Application
| Design | for flow sensors Typ SV5x5x, SV6x5x |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 222 |
|---|---|
| Materials | brass |
| Sensor connection | G 3/4 |
| Process connection | threaded connection R 1/2 |
Remarks
| Pack quantity | 2 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40440-00 —
