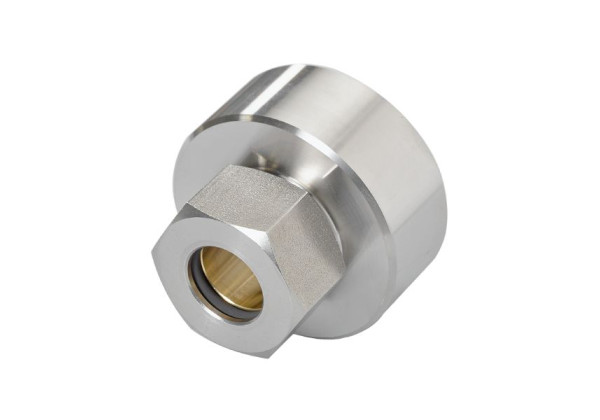

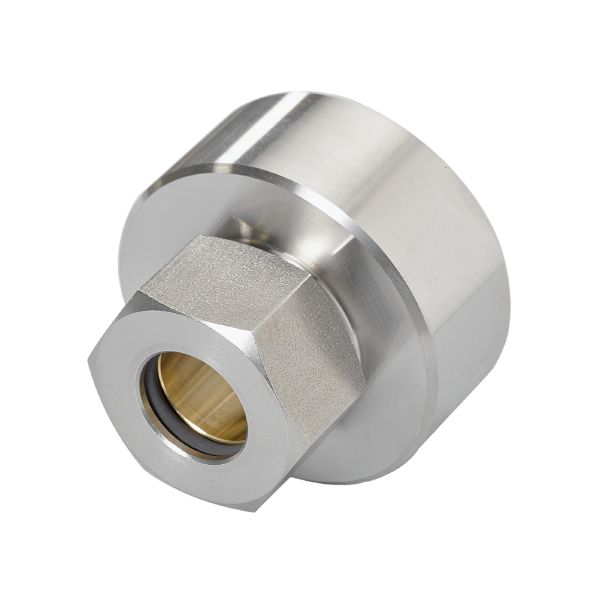

E43002 - efector160-WELDING ADAPTER 50/D16
Brand: IFM Electronic
Code: E43002
- Safe installation of level sensors in a container
- For use in industrial environments
- Robust stainless steel design for use in harsh industrial environments
- Easy adjustment of the immersion depth of the sensor
Application
| Design | for capacitive level sensors LK, LI, LT, LL |
|---|---|
| Installation | Clamp fitting |
| Pressure rating [bar] | 0.5 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 394.5 |
|---|---|
| Dimensions [mm] | Ø 50 / L = 37.5 |
| Materials | flange: stainless steel; Lock nut: stainless steel; spacer: brass; clamping ring: FKM |
| Tightening torque [Nm] | 6...9 |
| Sensor connection | Ø 16 mm |
| Process connection | welding adapter Ø 50 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43002-00 — 14.11.2012 —
