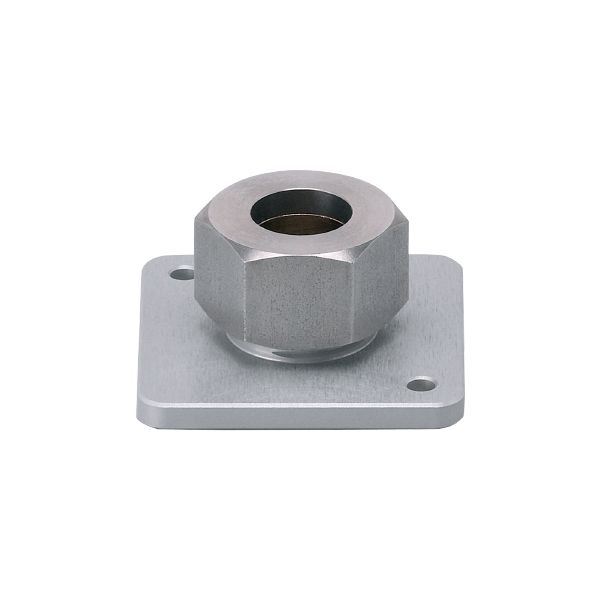

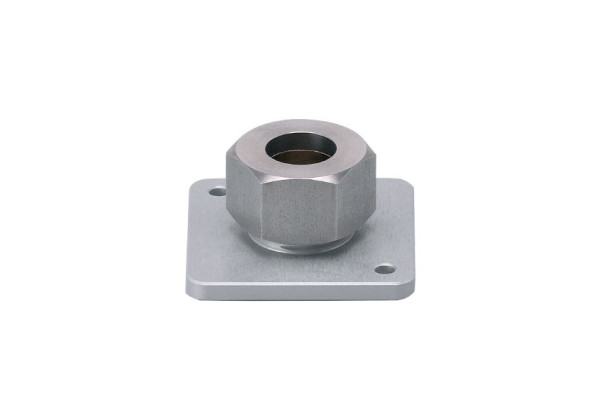

E43007 - efector160-FLANGE PLATE 54-52X52
Brand: IFM Electronic
Code: E43007
- Optional for the operation of capacitive level sensors
- Easy, quick and inexpensive mounting in the tank lid
- User-friendly setting of the requested immersion depth of the sensor
- Stable fixing of the sensor by clamp fitting
Application
| Design | for capacitive level sensors LK, LI, LT, LL |
|---|---|
| Pressure rating [bar] | 0.5 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|
Mechanical data
| Weight [g] | 121 |
|---|---|
| Materials | flange: aluminium anodised; Lock nut: stainless steel; spacer: brass; clamping ring: FKM; Sealing: Tesnit |
| Tightening torque [Nm] | 6...9 |
| Sensor connection | clamp adapter Ø 16 mm |
| Process connection | flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43007-00 — 14.11.2012 —
