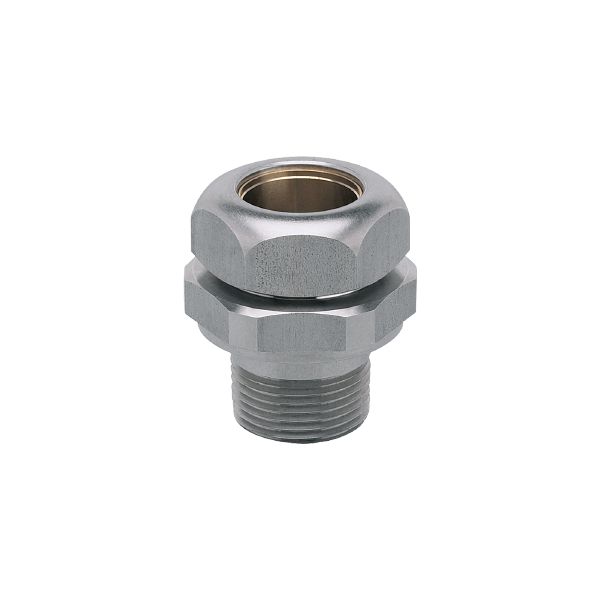

E43014 - efector160-MOUNTING ADAPTER NPT3/4/D22
Brand: IFM Electronic
Code: E43014
- For the installation of capacitive level sensors with climatic tube in containers
- Easy, quick and secure mounting
- User-friendly setting of the requested immersion depth of the sensor
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for climatic tube LK, LI |
|---|---|
| Installation | Clamp fitting |
| Pressure rating [bar] | 0.5 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|
Mechanical data
| Weight [g] | 208 |
|---|---|
| Dimensions [mm] | Ø 39 / L = 46 |
| Materials | stainless steel; NBR; brass |
| Tightening torque [Nm] | 6...8 |
| Sensor connection | Ø 22 mm |
| Process connection | threaded connection 3/4" NPT external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43014-00 — 14.11.2012 —
