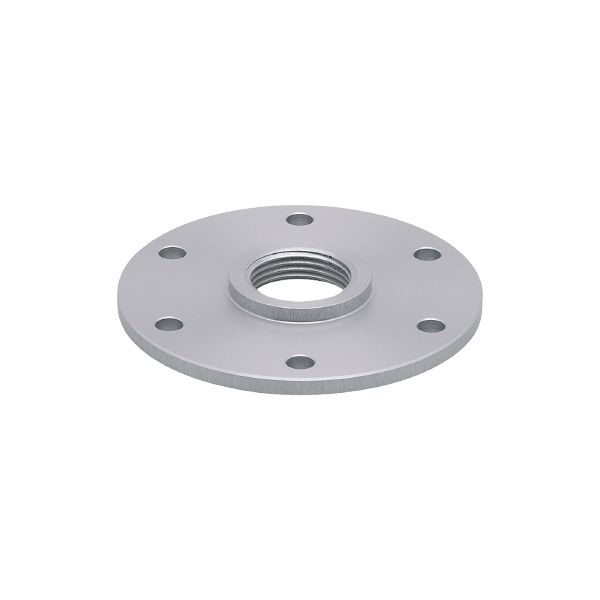

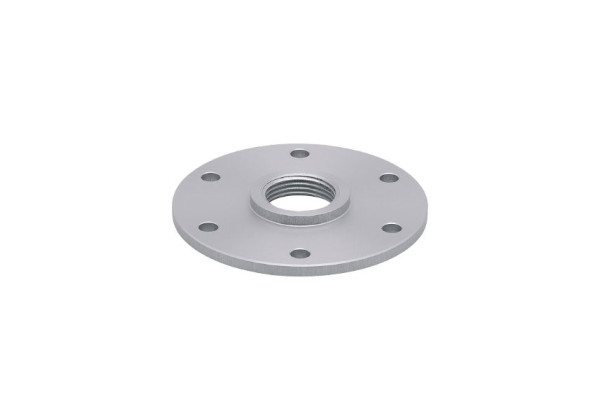

E43201 - efector160-FLANGE PLATE 73-90/G3/4
Brand: IFM Electronic
Code: E43201
- Optional for the operation of level sensors with guided wave radar
- Easy, quick and inexpensive mounting in the tank lid
Application
| Design | for level sensors LR |
|---|---|
| Installation | according to DIN 24557 |
| Tank pressure [bar] | -1...16 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|
Mechanical data
| Weight [g] | 257.3 |
|---|---|
| Type of mounting | according to DIN 24557 |
| Materials | flange: stainless steel (1.4305 / 303); Sealing: NBR |
| Tightening torque [Nm] | 6...9 |
| Sensor connection | G 3/4 |
| Process connection | flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43201-00 — 14.11.2012 —
