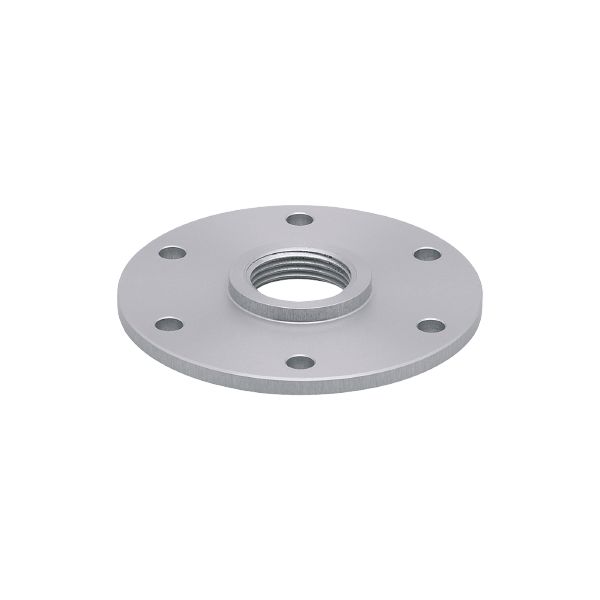

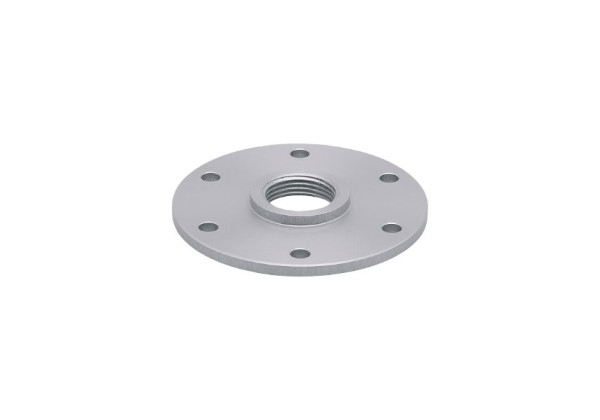

E43206 - efector160-FLANGE PLATE 73-90/NPT3/4
Brand: IFM Electronic
Code: E43206
- Optional for the operation of level sensors with guided wave radar
- Easy, quick and inexpensive mounting in the tank lid
- Required for the operation on containers with plastic lid
Application
| Design | for level sensors LR |
|---|---|
| Installation | according to DIN 24557 |
| Tank pressure [bar] | -1...16 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|
Mechanical data
| Weight [g] | 266.8 |
|---|---|
| Type of mounting | according to DIN 24557 |
| Materials | flange: stainless steel (1.4305 / 303); Sealing: NBR |
| Tightening torque [Nm] | < 40 |
| Sensor connection | 3/4" NPT |
| Process connection | flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43206-00 — 02.12.2016 —
