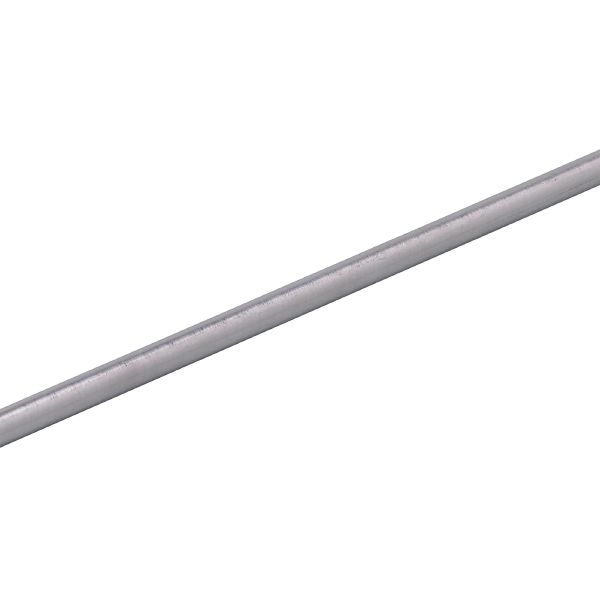

E43226 - efector160-LR PROBE L300
Brand: IFM Electronic
Code: E43226
- Required for the operation of level sensors with guided wave radar
- For the reliable detection of aqueous media
- Adaptation to different container heights through shortening of the probe
- Suitable for coolant emulsions, cleaning liquids or heavily polluted water
- Easy, quick and secure mounting
Application
| Design | for level sensors LR |
|---|
Measuring/setting range
| Probe length L [mm] | 300 |
|---|
Mechanical data
| Weight [g] | 128.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43226-00 — 11.11.2013 —
