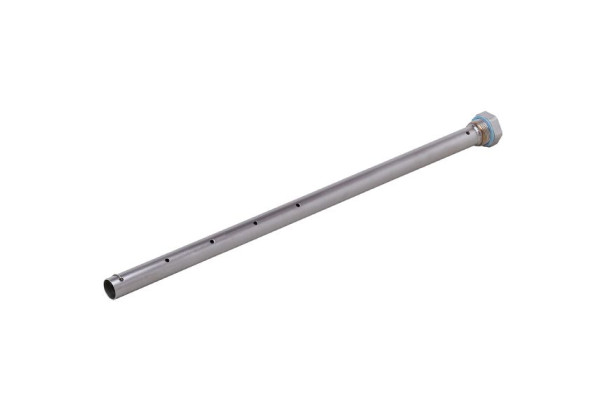

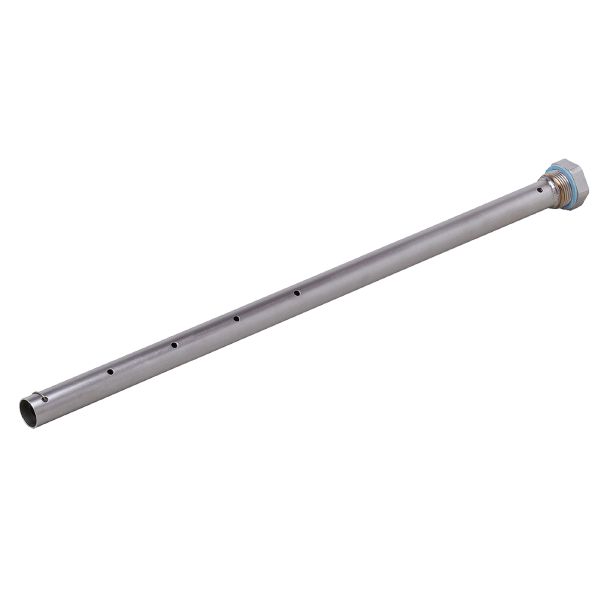

E43229 Coaxial pipe for level sensors LR COAX TUBE G3/4 L500
Brand: IFM Electronic
Code: E43229
- For use in low dielectric media
- Reliable detection of oils and oil-based media
- Efficient protection against electromagnetic interference
- No minimum distance to the vessel wall required
Application
| Design | for level sensors LR |
|---|---|
| Medium temperature [°C] | -40...200 |
| Pressure rating [bar] | 16 |
| Vacuum resistance [mbar] | -1000 |
| MAWP (for applications according to CRN) [bar] | 16 |
Measuring/setting range
| Probe length L [mm] | 500 |
|---|
Mechanical data
| Weight [g] | 316.4 |
|---|---|
| Materials | Coaxial pipe: stainless steel (1.4301 / 304); Sealing: NBR reinforced fibre; Centring piece: PPS reinforced fibre; fixing bracket: stainless steel (1.4310 / 301) |
| Sensor connection | G 3/4 |
| Process connection | G 3/4 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43229-01 — 13.01.2017 —
