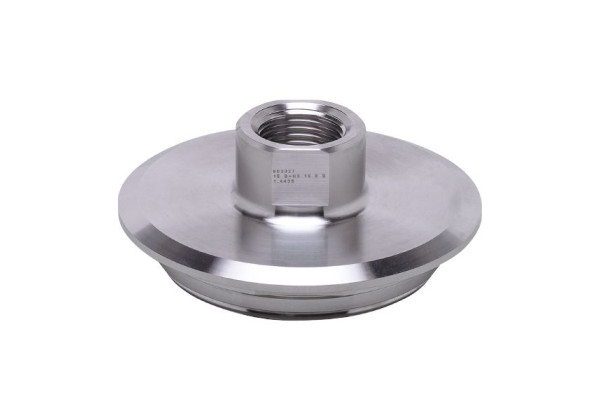

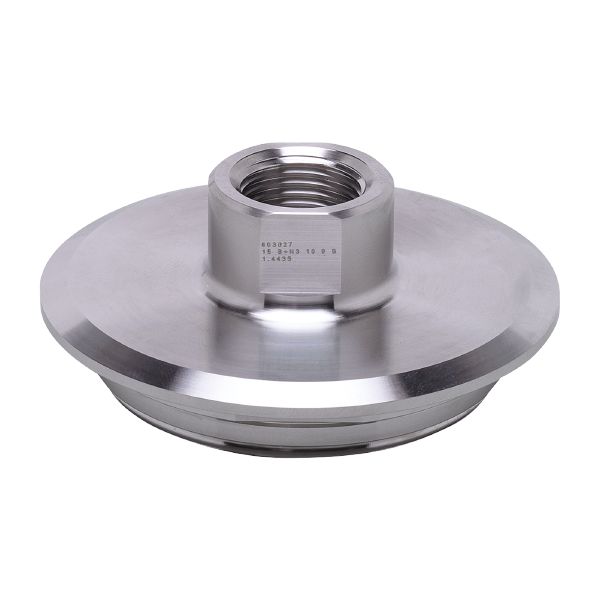

E43307 - efector160-ADAPT G1/2 VARIVENT D68
Brand: IFM Electronic
Code: E43307
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Pressure rating [bar] | 25 |
|---|
Mechanical data
| Weight [g] | 596 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm |
| Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 |
| Hygienic equipment class to DIN 11866 | H4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43307-00 — 23.06.2021 —
