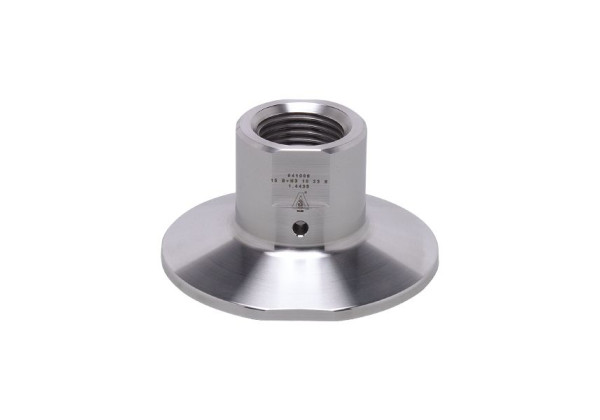

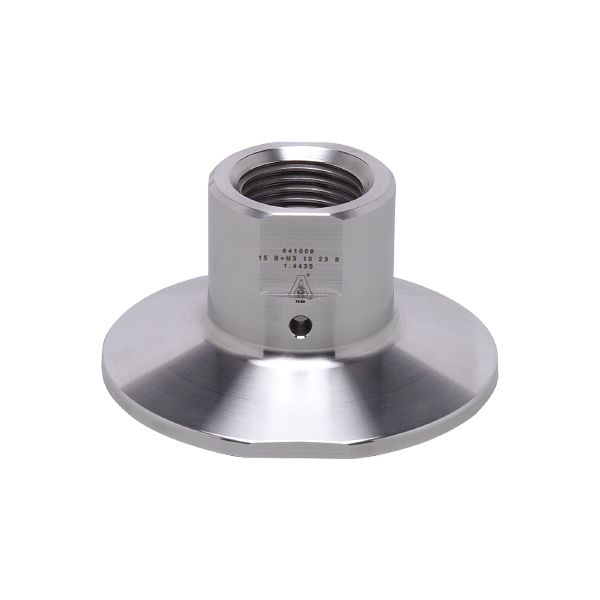

E43312 - efector160-ADAPT G1/2-CLAMP (2″) 3A
Brand: IFM Electronic
Code: E43312
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Design | with leakage port |
|---|---|
| Pressure rating [bar] | 16 |
| MAWP (for applications according to CRN) [bar] | 16 |
Mechanical data
| Weight [g] | 268 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | Clamp DN50 (2") DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43312-00 — 14.11.2012 —
