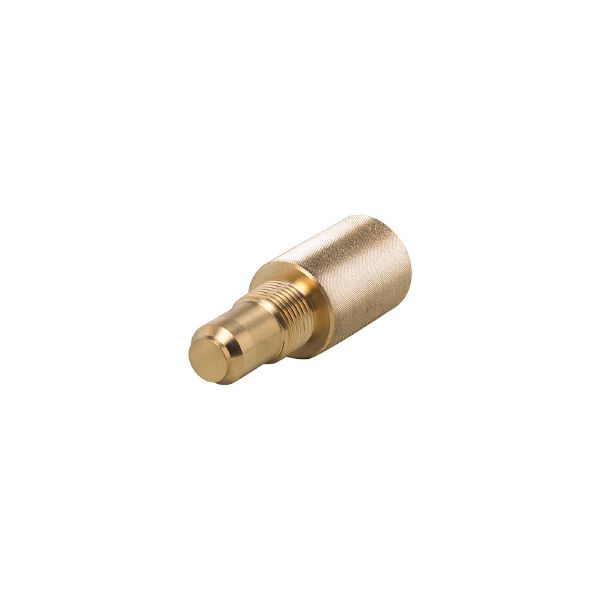

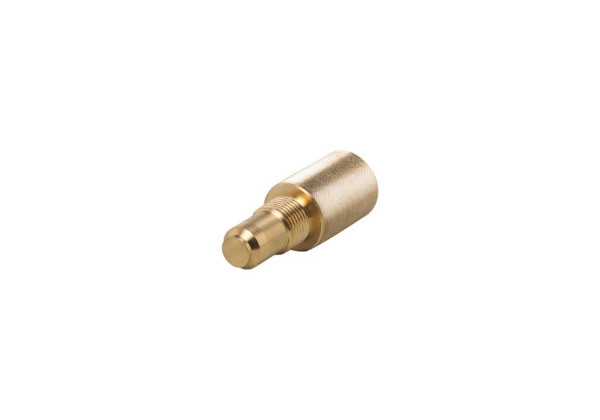

E43314 - efector160-ADAPT G1/2-WELD MANDREL
Brand: IFM Electronic
Code: E43314
- Mounting aid for welding adapters to protect the sealing edge
- Reliable heat dissipation during welding
Application
| Application | carries away heat during welding |
|---|
Mechanical data
| Weight [g] | 386.5 |
|---|---|
| Materials | brass (2.0401) |
| Process connection | G 1/2 sealing cone |
| Surface characteristics Ra/Rz of the wetted parts | 10 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43314-00 — 17.07.2012 —
