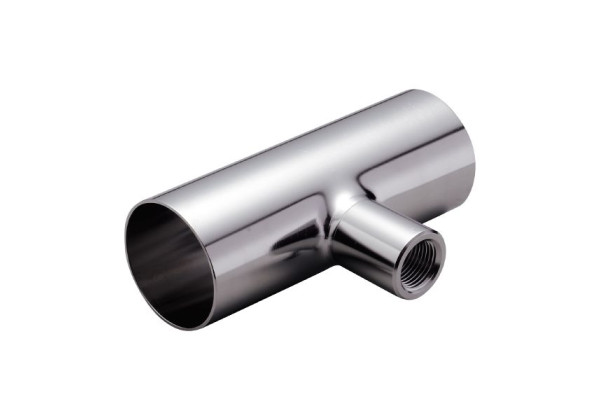

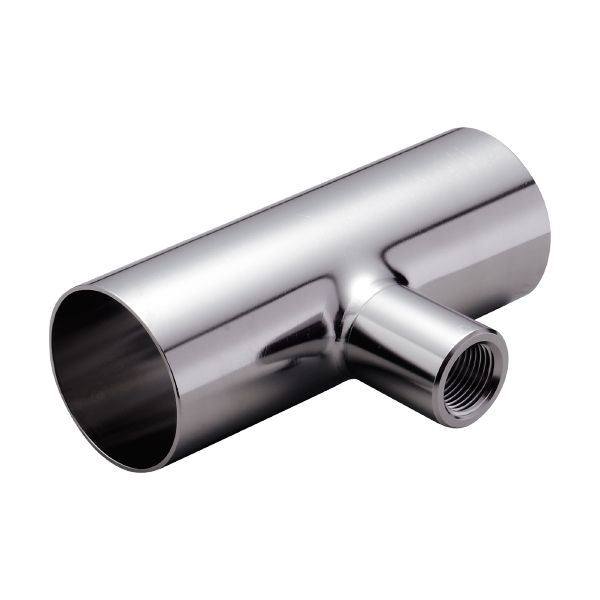

E43318 - efector160-T-PIPE/G1/2/L140/DN50
Brand: IFM Electronic
Code: E43318
- Safe installation of process sensors in pipes
- For use in industrial and hygienic applications
- Robust stainless steel housing
Application
| Design | for sensors and adapters with process connection G ½ A |
|---|---|
| Pressure rating [bar] | 20 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 667.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | welding adapter Ø 53 mm |
| Surface characteristics Ra/Rz of the wetted parts | 0.8 / 4 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43318-00 — 23.06.2021 —
