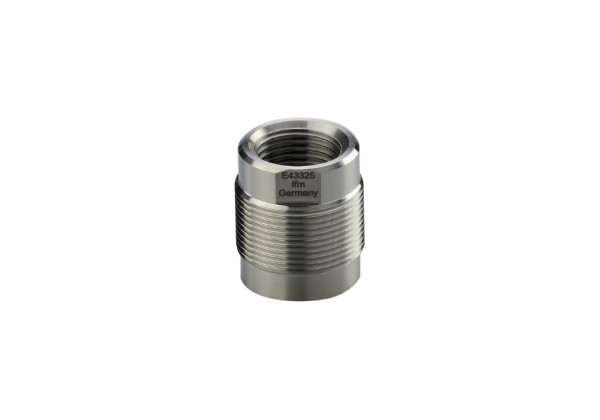

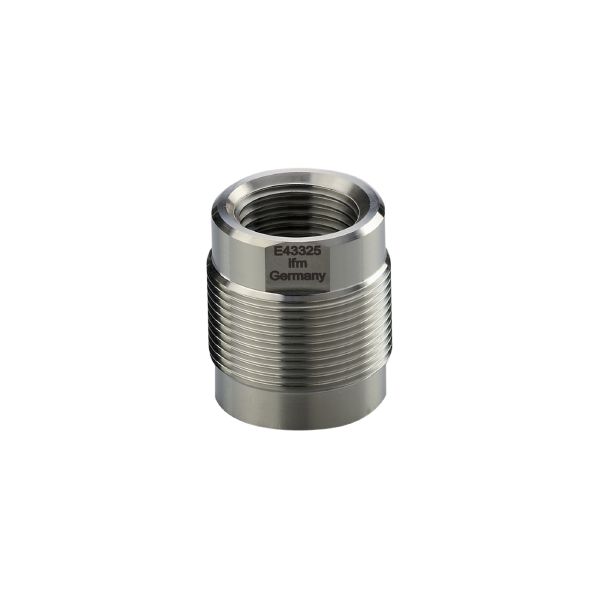

E43325 - efector160-ADAPT G1/2-M30X1,5
Brand: IFM Electronic
Code: E43325
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Robust stainless steel design for the requirements of the food and beverage industry
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 141 |
|---|---|
| Dimensions [mm] | M30 |
| Thread designation | M30 |
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | threaded connection M30 x 1,5 |
| Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43325-01 — 21.06.2022 —
