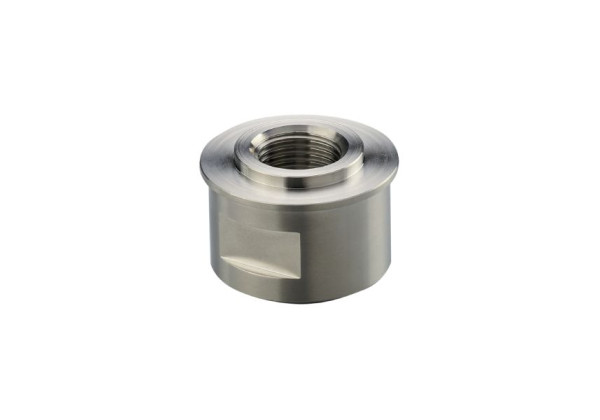

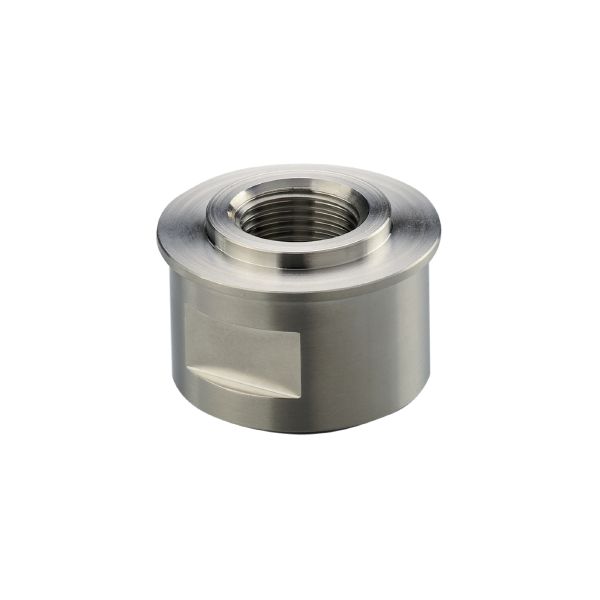

E43329 - efector160-ADAPT G1/2-UPJ
Brand: IFM Electronic
Code: E43329
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Robust stainless steel design for the requirements of the food and beverage industry
Mechanical data
| Weight [g] | 297 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | UPJ Ø 42 mm |
| Surface characteristics Ra/Rz of the wetted parts | 0.8 / 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43329-01 — 21.06.2022 —
