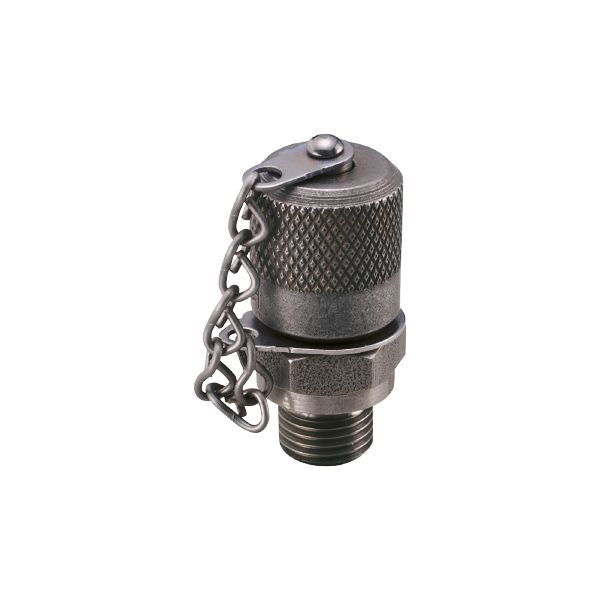

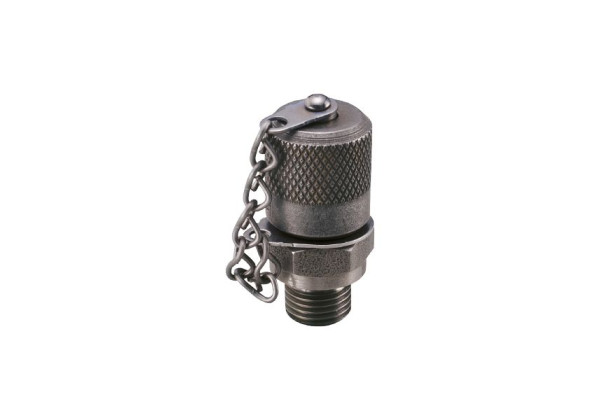

E43330 - efector160-SCREW COUPLING WITH COVER PLATE 0,18MM
Brand: IFM Electronic
Code: E43330
- With hydraulic bezel for reducing the volume flow at high system pressure
- For the installation of the oil particle monitor in pipes
- Very high pressure rating
- With Minimess process connection
- Robust design for use in harsh industrial environments
Application
| Pressure rating [bar] | 630 |
|---|
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 76.3 |
|---|---|
| Materials | socket housing: steel (1.0718); surface characteristics: zinc / nickel grey; Sealing: NBR |
| Sensor connection | G 1/4 |
| Process connection | M16 x 2 Minimess |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43330-00 — 20.11.2013 —
