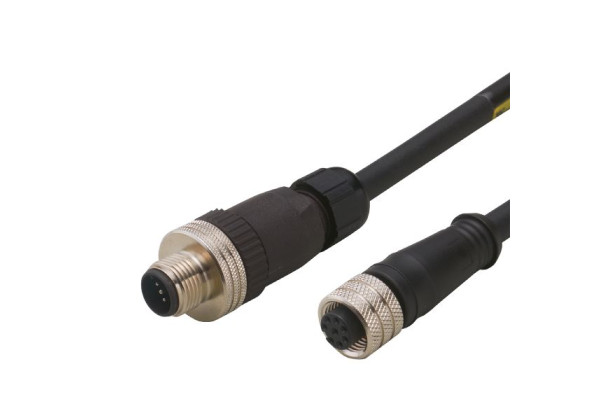

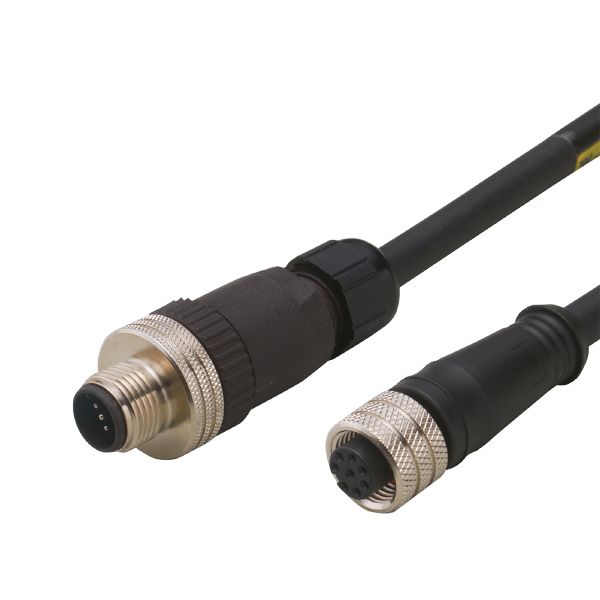

E43332 - efector160-CABLE CAN ADAPTER
Brand: IFM Electronic
Code: E43332
- Reliable connection technology for CAN bus participants
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
Application
| Special feature | Gold-plated contacts |
|---|---|
| Design | CAN adapter cable |
Electrical data
| Operating voltage [V] | < 30 AC / < 36 DC |
|---|---|
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 48.8 |
|---|---|
| Dimensions [mm] | 20 x 20 x 55 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated |
Electrical connection
| Connection | Cable: 0.15 m, PUR / PVC, black, Ø 6.8 mm; 4 x 0.25 mm² |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43332-00 — 26.11.2013 —
