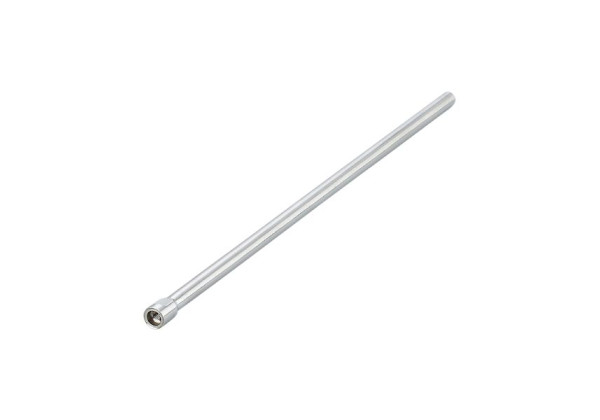

E43340 - efector160-LR HYGIENE PROBE L500
Brand: IFM Electronic
Code: E43340
- Required for the operation of level sensors with guided wave radar
- For the reliable detection of aqueous media
- Adaptation to different container heights through shortening of the probe
- Particularly suited for use in hygienic applications
- Easy, quick and secure mounting
Application
| Design | hygienic, for level sensors LR |
|---|---|
| Application | hygienic systems |
Measuring/setting range
| Probe length L [mm] | 500 |
|---|
Mechanical data
| Weight [g] | 218 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | < 6.5 |
| Surface characteristics Ra/Rz of the wetted parts | < 0.8 / 8 |
| Hygienic equipment class to DIN 11866 | H3 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43340-00 — 25.03.2015 —
