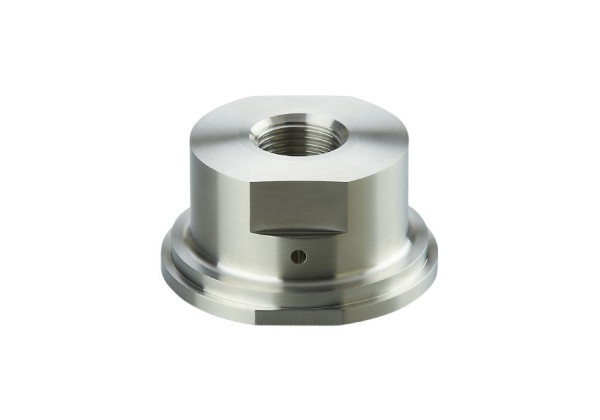

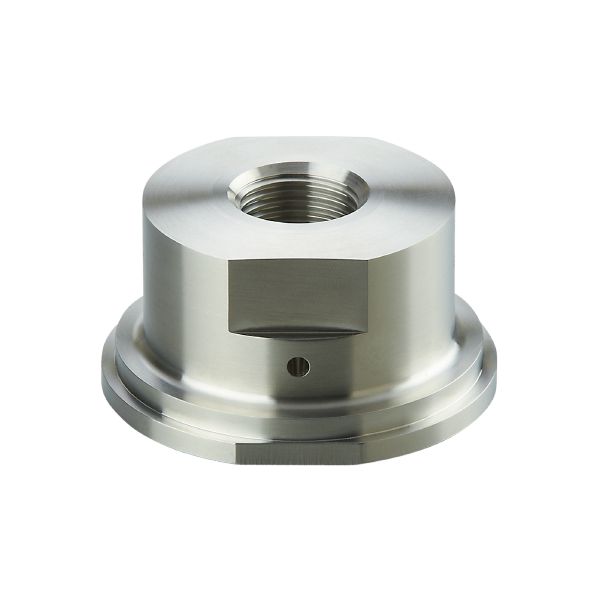

E43344 - ADAPT G1/2 - SMS DN50/2″
Brand: IFM Electronic
Code: E43344
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Design | with leakage port |
|---|---|
| Pressure rating [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 570.5 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | SMS pipe fitting DN50 (2") |
| Surface characteristics Ra/Rz of the wetted parts | < 0.8 / 8 |
| Sealing | metal to PEEK |
| Hygienic equipment class to DIN 11866 | H3 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43344-00 — 21.09.2015 —
