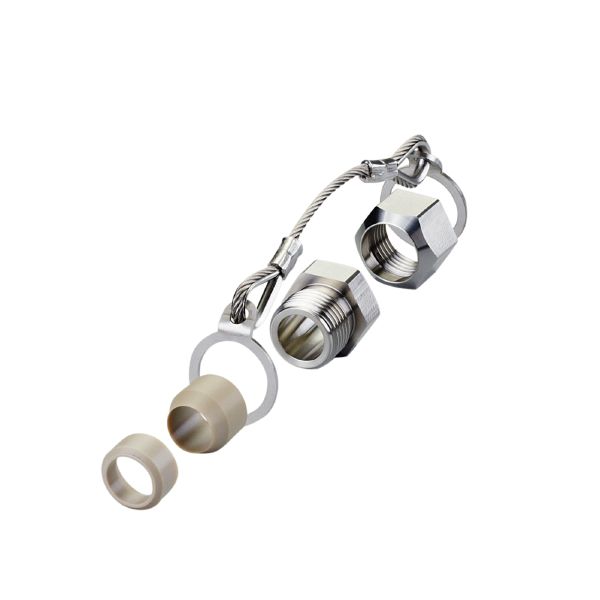

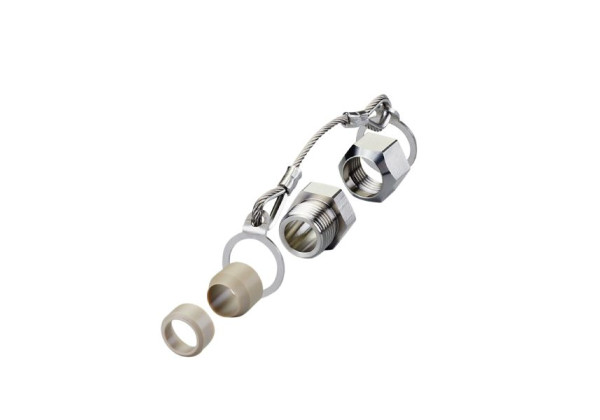

E43349 - efector160-VARIABLE CLAMP ADAPTER 150
Brand: IFM Electronic
Code: E43349
- For the installation of level sensors in containers or pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Design | for hygienic adaptations G 1/2, for level sensor LMT104 |
|---|---|
| Installation | Clamp fitting |
Mechanical data
| Weight [g] | 174.5 |
|---|---|
| Materials | PEEK-GF30; stainless steel (1.4404 / 316L) |
| Sensor connection | Ø 14 mm |
| Process connection | threaded connection G 1/2 sealing cone |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43349-00 — 23.02.2015 —
