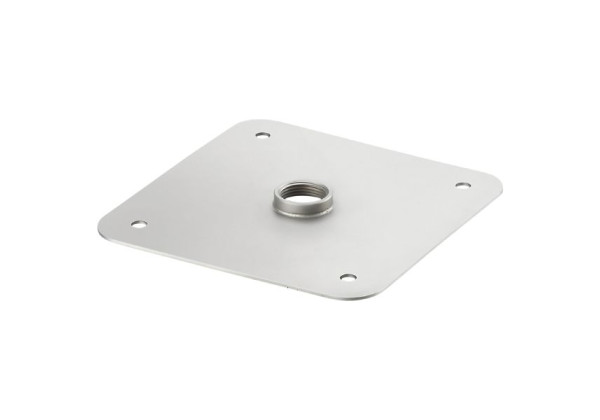

E43380 - LAUNCHING PLATE G3/4
Brand: IFM Electronic
Code: E43380
- Optional for the operation of level sensors with guided wave radar
- Easy, quick and inexpensive mounting in the tank lid
- Required for the operation on containers with plastic lid
Application
| Design | for level sensors LR |
|---|---|
| Tank pressure [bar] | -1...16 |
Mechanical data
| Weight [g] | 627.5 |
|---|---|
| Materials | stainless steel (1.4571/316Ti ) |
| Tightening torque [Nm] | 6...9 |
| Sensor connection | G 3/4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43380-00 — 17.02.2017 —
