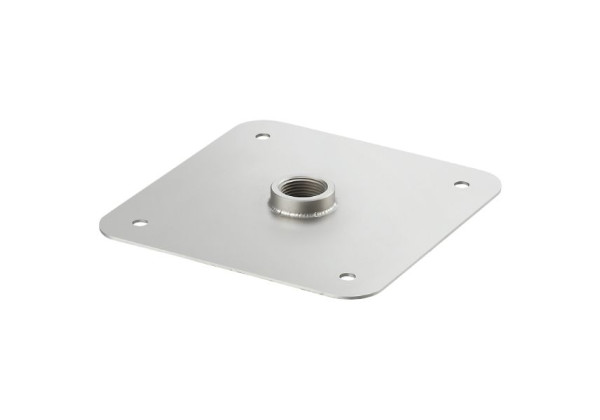

E43381 - LAUNCHING PLATE 3/4NPT
Brand: IFM Electronic
Code: E43381
- Optional for the operation of level sensors with guided wave radar
- Easy, quick and inexpensive mounting in the tank lid
- Required for the operation on containers with plastic lid
Application
| Design | for level sensors LR |
|---|---|
| Tank pressure [bar] | -1...16 |
Mechanical data
| Weight [g] | 634.65 |
|---|---|
| Materials | base plate: stainless steel (1.4571/316Ti ); Adapter: stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 6...9 |
| Sensor connection | 3/4" NPT |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43381-00 — 13.02.2017 —
