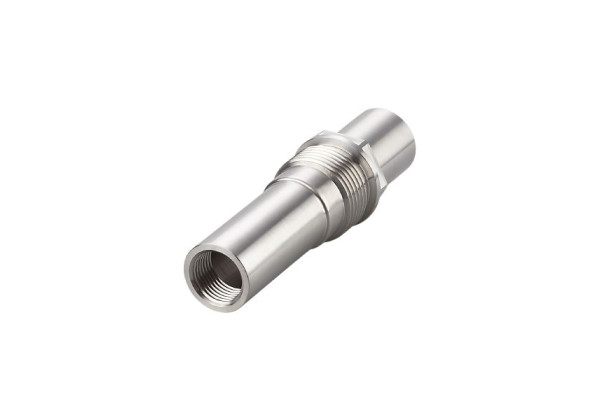

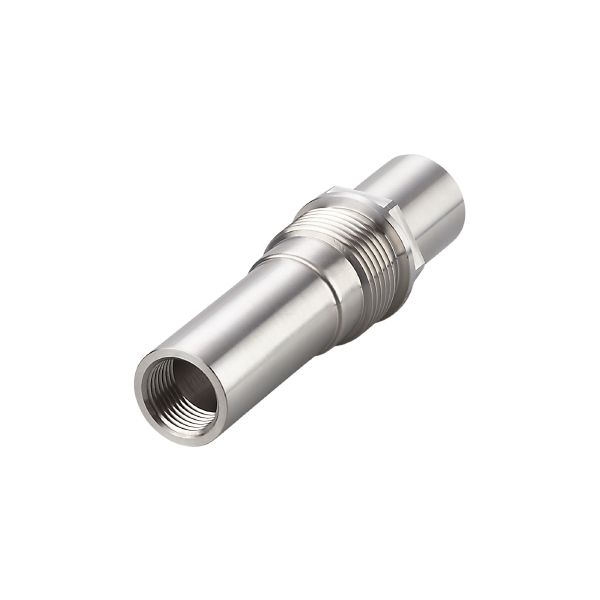

E43383 - ADAPT F VIBRATION FORK SPARE
Brand: IFM Electronic
Code: E43383
Application
| Pressure rating [bar] | 40 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 276.5 |
|---|---|
| Materials | Adapter: stainless steel (1.4404 / 316L); Cover: PVC |
| Sensor connection | G 1/2 |
| Process connection | G 1 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43383-00 — 29.03.2017 —
