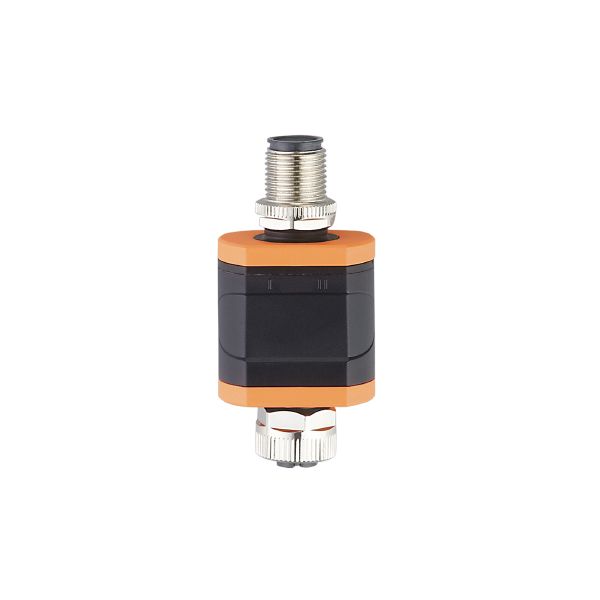

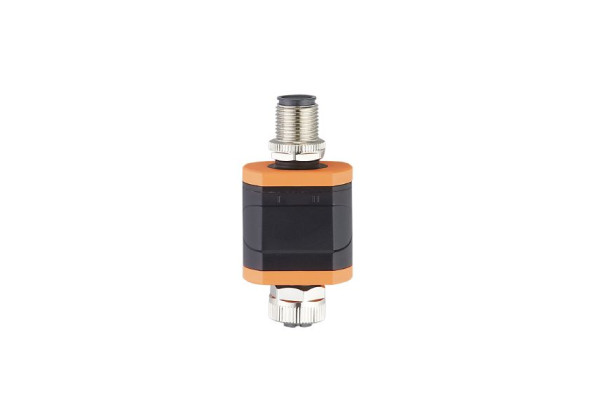

E43410 IO-Link data splitter IO-LINK DATA SPLITTER NPN
Brand: IFM Electronic
Code: E43410
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for retrofitting of existing IO-Link systems; for systems without IO-Link capabilities |
Electrical data
| Operating voltage [V] | 18...30 DC; (on the master side; on the controller / system: 20...30 DC) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 17; (both sides) |
| Protection class | III |
| Reverse polarity protection | yes; (on the master side) |
| Power-on delay time [s] | < 2; (for communication; response time switching signal: response time device plus IO-Link process cycle time) |
Inputs / outputs
| Total number of inputs and outputs | 1; (on the controller / system) |
|---|---|
| Number of inputs and outputs | Number of digital outputs: 1 |
Outputs
| Output signal | switching signal; IO-Link |
|---|---|
| Electrical design | NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Type of short-circuit protection | pulsed |
| Short-circuit proof | yes |
| Overload protection | yes |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Supported DeviceIDs |
|
| Note on interfaces |
| |
|---|---|---|
| Unterstützte Masterportklasse | A | |
| Transmission type | COM2 (38,4 kBaud) | |
| IO-Link revision | 1.1 | |
| SDCI standard | IEC 61131-9 | |
| Profiles | Identification and Diagnosis (0x4000) | |
| SIO mode | yes | |
| Min. process cycle time [ms] | 4.2 |
| Note on interfaces |
| |
|---|---|---|
| Unterstützte Masterportklasse | A / B | |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) | |
| IO-Link revision | 1.0; 1.1 | |
| SDCI standard | IEC 61131-9 |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 307 | ||||
| UL approval |
|
Mechanical data
| Weight [g] | 89 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); brass (2.0401); PBT; PA; Sealing: FKM; |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessory required |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43410-00 — 13.04.2023 —
