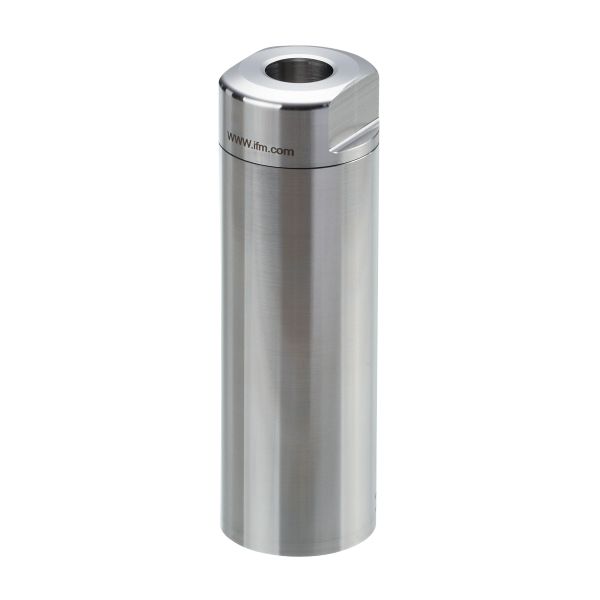

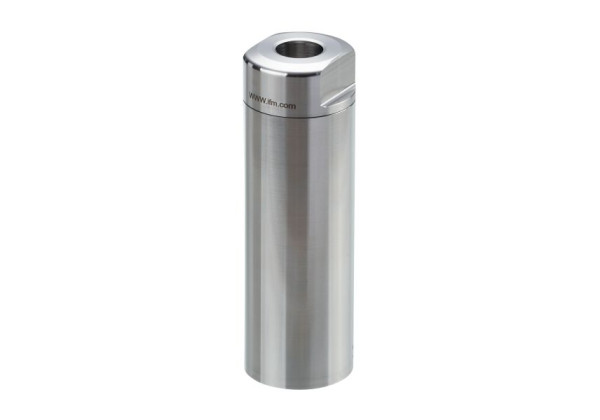

E43414 REAR MOUNT ADAPTER REAR MOUNT ADAPTER

Brand: IFM Electronic

Code: E43414

For rear installation of process sensors in tanks
Easy, quick and secure mounting
Stainless steel adapter for the requirements of the food and beverage industry
High pressure rating

Application

Design

adapter for rear sensor installation

Pressure rating [bar]

Note on pressure rating

for the connection sensor - adapter

Mechanical data

Weight [g]	534.5
Materials	Adapter: stainless steel (1.4435 / 316L); weld-on pipe: stainless steel (1.4571/316Ti ); Sealing: FKM
Sensor connection	G 1/2 sealing cone
Process connection	Ø 38 mm
Surface characteristics Ra/Rz of the wetted parts	0.8 / 4

Remarks

due to the adjustment of the ambient temperature of the installed sensor to the medium temperature, the medium temperature must not exceed the specified data for the ambient temperature of the installed sensor.

Pack quantity

1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43414-00 — 27.09.2022 —
