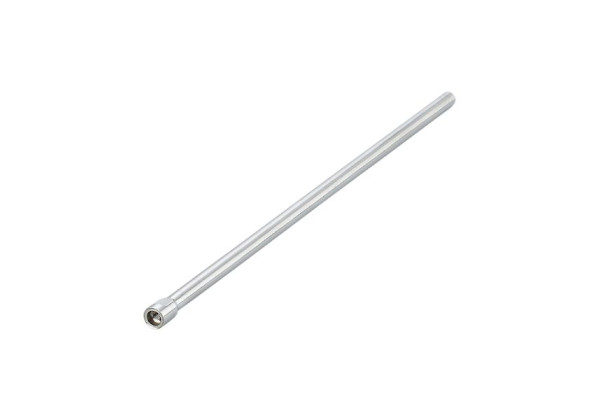

E43424 Probe for level sensors LR HYGIENE PROBE L545
Brand: IFM Electronic
Code: E43424
Application
| Design | hygienic, for level sensors LR |
|---|---|
| Application | hygienic systems |
Measuring/setting range
| Probe length L [mm] | 545 |
|---|
Mechanical data
| Weight [g] | 240 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | < 6.5 |
| Surface characteristics Ra/Rz of the wetted parts | < 0.8 / 8 |
| Hygienic equipment class to DIN 11866 | H3 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43424-00 — 27.01.2020 —
