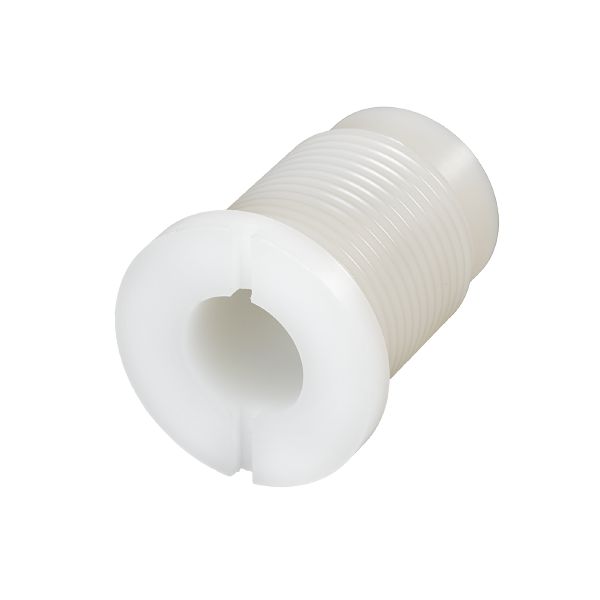

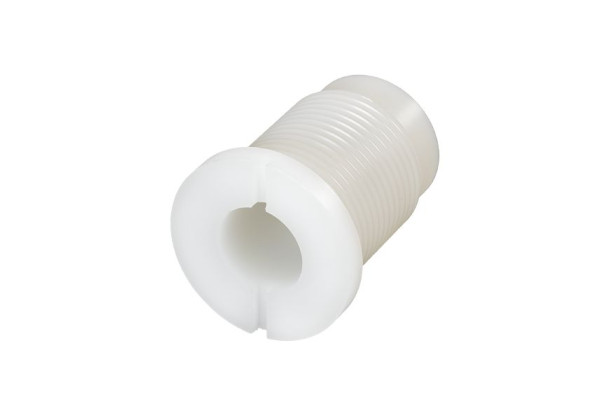

E43900 - efector100-MOUNTING ADAPTER G3/4″,POM
Brand: IFM Electronic
Code: E43900
- Reliable installation in a vessel wall
- Efficient protection against soiling, impact and shock
- For level detection with capacitive sensors in containers and tanks
- High pressure rating
- Use in high medium temperatures
Application
| Pressure rating [bar] | 8 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|
Mechanical data
| Weight [g] | 22 |
|---|---|
| Dimensions [mm] | G 3/4 / L = 50 |
| Thread designation | G 3/4 |
| Materials | Adapter: POM |
| Tightening torque [Nm] | 5 |
| Sensor connection | threaded connection M18 x 1 internal thread |
| Process connection | threaded connection G 3/4 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43900-00 — 26.11.2008 —
