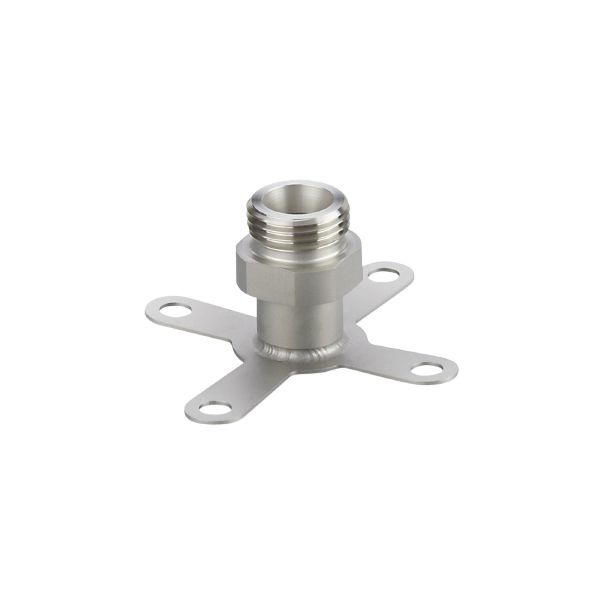

E43908 Mounting adapter for flow sensors ADAPTION SHEET WELDED M18
Brand: IFM Electronic
Code: E43908
Application
| Media | liquids and gases of the fluid group 2 according to the Pressure Equipment Directive (PED) |
|---|
Tests / approvals
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
|---|
Mechanical data
| Weight [g] | 97.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L) |
| Sensor connection | M18 x 1,5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43908-00 —
