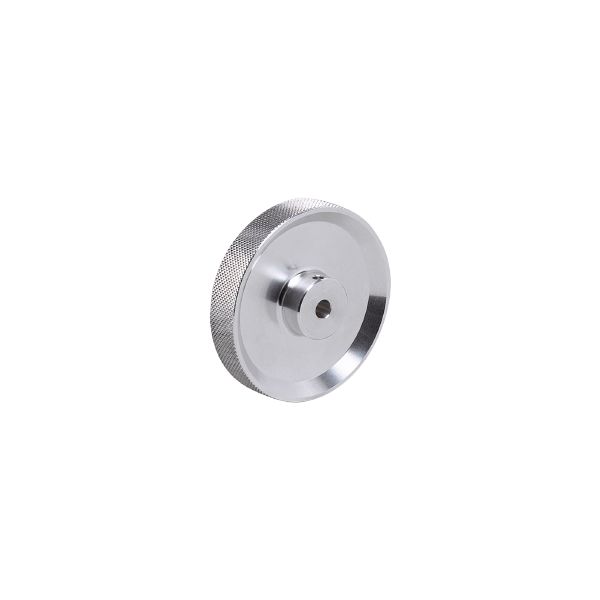

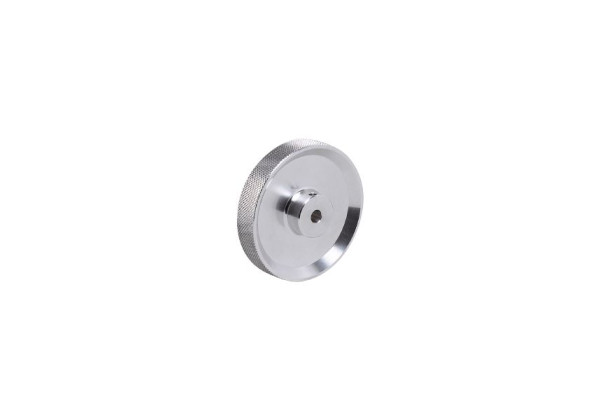

E60006 Measuring wheel MEASURING WHEEL U:200 N:06
Brand: IFM Electronic
Code: E60006
- For use in combination with encoders
- For an exact belt speed measurement
- For exact linear measurement in transversal cutting processes
- Robust design for use in harsh industrial environments
Application
| Design | cross-knurl |
|---|
Operating conditions
| Ambient temperature [°C] | -30...80 |
|---|
Mechanical data
| Weight [g] | 66.8 |
|---|---|
| Inside diameter [mm] | 6 |
| External diameter [mm] | 63.6 |
| Materials | wheel: aluminium; surface characteristics: aluminium |
| Circumference [mm] | 200 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60006-01 — 04.11.2015 —
