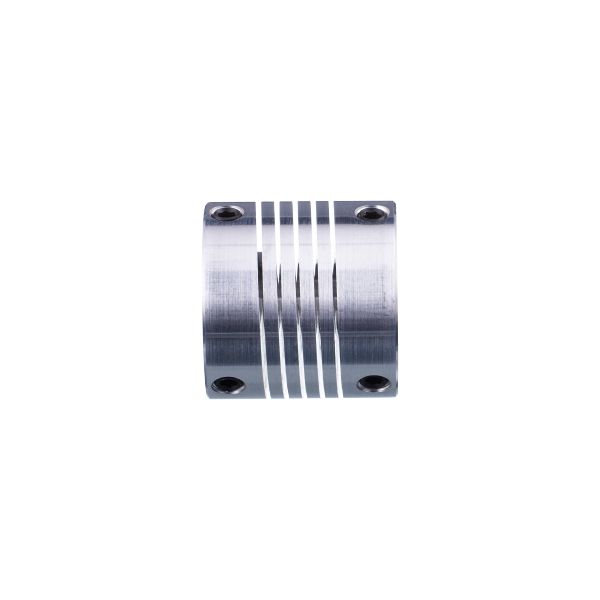

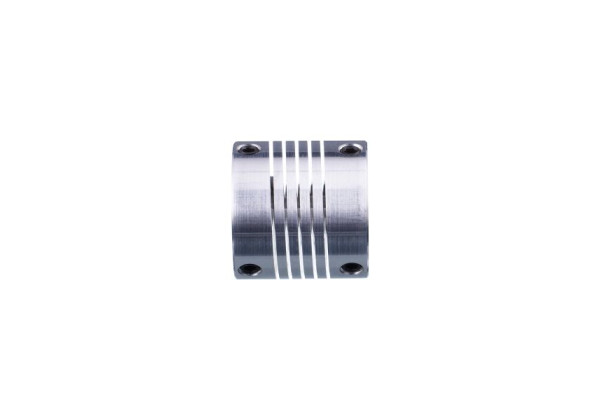

E60027 - efector400-COUPLING 25-6-8-24-SV
Brand: IFM Electronic
Code: E60027
- Clearance-free transmission of rotary movements
- Efficient vibration damping
- Excellent compensation of alignment errors
- Low rigidity of the torsion spring
- Small restoring forces
Mechanical data
| Weight [g] | 27.4 |
|---|---|
| Dimensions [mm] | Ø 25 / L = 24 |
| Materials | aluminium |
| Tightening torque [Nm] | tightening torque screws: 120 Ncm |
| External diameter D [mm] | 25 |
| Inside diameter 1 [mm] | 6 |
| Inside diameter 2 [mm] | 8 |
| Depth of the clamping hub [mm] | 7 |
| Clamping screw [mm] | M4 x 6 - ISO 4029 (4x) |
| Length [mm] | 24 |
| Max. revolution, mechanical [U/min] | 8000 |
| Max. axial shaft misalignment [mm] | ± 0,5 |
| Max. radial shaft misalignment [mm] | ± 0,3 |
| Max. angular displacement [°] | ± 4,0 |
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60027-00 — 23.01.2023 —
