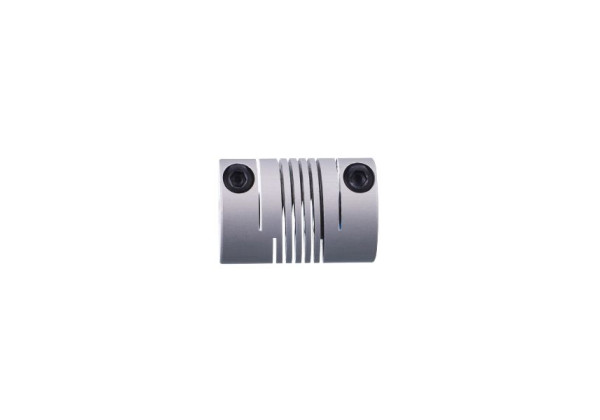

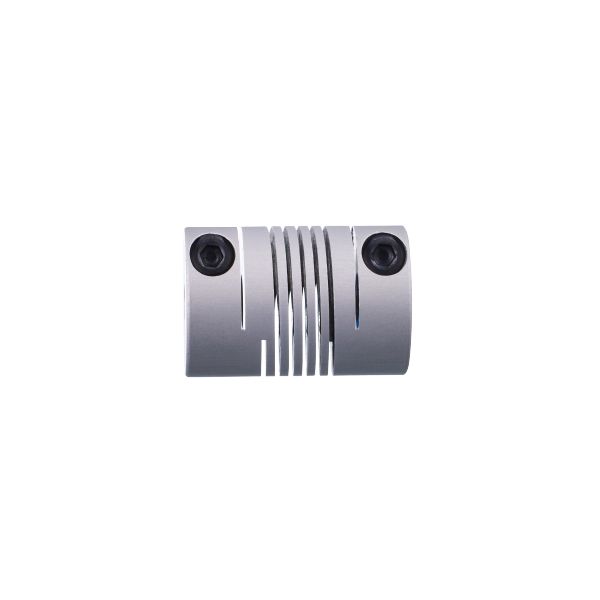

E60119 - efector400-COUPLING 19,2-4-6-28-KV

Code: E60119

Clearance-free transmission of rotary movements
Efficient vibration damping
Excellent compensation of alignment errors
Low rigidity of the torsion spring
Small restoring forces

Mechanical data

Weight [g]	18.4
Dimensions [mm]	Ø 19 / L = 28
Materials	aluminium
Tightening torque [Nm]	tightening torque screws: 120 Ncm
External diameter D [mm]	19
Inside diameter 1 [mm]	4
Inside diameter 2 [mm]	6
Depth of the clamping hub [mm]	6.5
Clamping screw [mm]	M3 x 10 - ISO 4762 (2x)
Length [mm]	28
Max. revolution, mechanical [U/min]	6000
Max. axial shaft misalignment [mm]	± 0,4
Max. radial shaft misalignment [mm]	± 0,25
Max. angular displacement [°]	± 4,0

Remarks

The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C.

The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.

Pack quantity

1 pcs.
