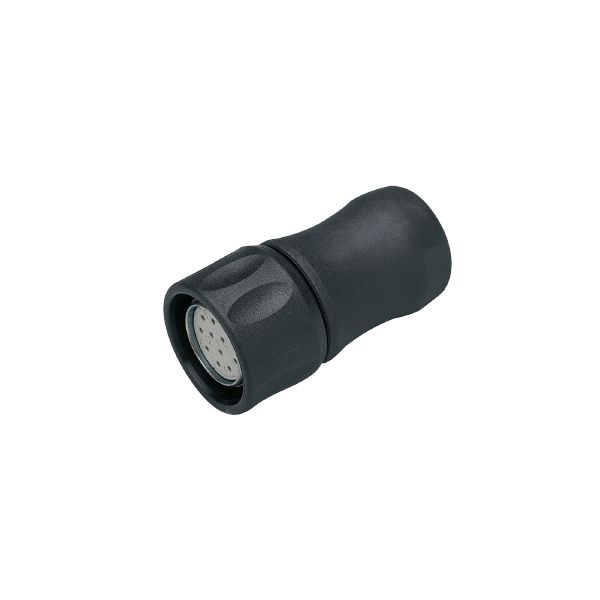

E60122 - ecomat400-SDOGK120MKRFKSG
Brand: IFM Electronic
Code: E60122
- For incremental encoders with 12-pole M23 connector
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection due to soldering
Electrical data
| Operating voltage [V] | 4.5...30 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...125 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 43 |
|---|---|
| Dimensions [mm] | 28 x 28 x 52 |
| Materials | brass in plastic sheath; PA 6.6 black |
| Moulded-body material | brass / PA 6.6, in plastic sheath |
| Material nut | brass, in plastic sheath / PA 6.6, in plastic sheath |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| soldering:...1 mm² |
Electrical connection - socket
| Connection | Connector: 1 x M23, straight; Moulded body: brass / PA 6.6, in plastic sheath; Locking: brass, in plastic sheath |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E60122-00 — 06.06.2011 —
